70-72 MALIBU SWEEP DASH PERFORMANCE II WHT

$789.99

Product Description

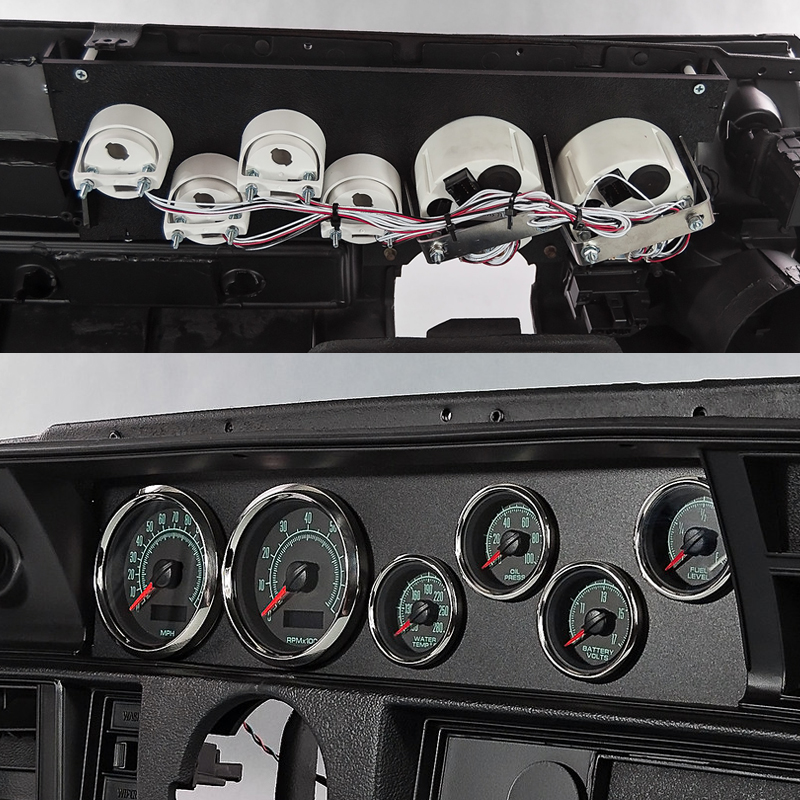

Create a whole new performance look for your 70-72 Chevelle/Malibu Sweep dash with a NVU direct-fit kit.  (Does not fit SS dash) NVU's exclusive CNC laminate bracket easily installs any NVU 6 gauge kit in your factory dash without modification to the factory bezel.  Bolts right in using the OE mountings.

Each kit is hand assembled in Detroit and features NVU’s unique mounting bracket, CNC laser cut and formed to precise specifications for a superior fit. Each kit comes complete with senders, factory-match fuel gauge (0-90). NVU instruments are easy to integrate with your old school engine or the latest LS powerplants.  Programmable speedometer reads vehicle speed from most any aftermarket and OE speed senders (including GPS); can also read from a GM PCM.  Tachometer operates from any ignition output or PCM.

Performance II Series instruments have the combined style of European sports car and racing gauges.  This performance look has a classic gauge feel without the "in-your-face" look of a racing gauge.  Full sweep stepper motors for higher dial resolution and blue LED back lighting at night.  Stainless or bezels and flat glass add to the high class, OE installed look.  Just like always, NVU does not have any logos on the dial so the final result will be a professional, custom look.

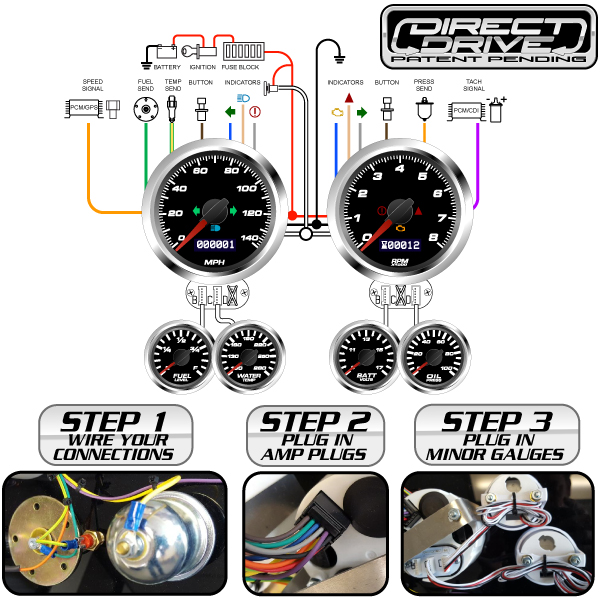

Looks are only skin deep; all Performance II instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA.  All 6 gauge kits with OLED screens feature Phoenix Direct Drive technology, bay far the easiest way to wire up a 6 gauge kit.  Learn more about all of the features HERE>>>

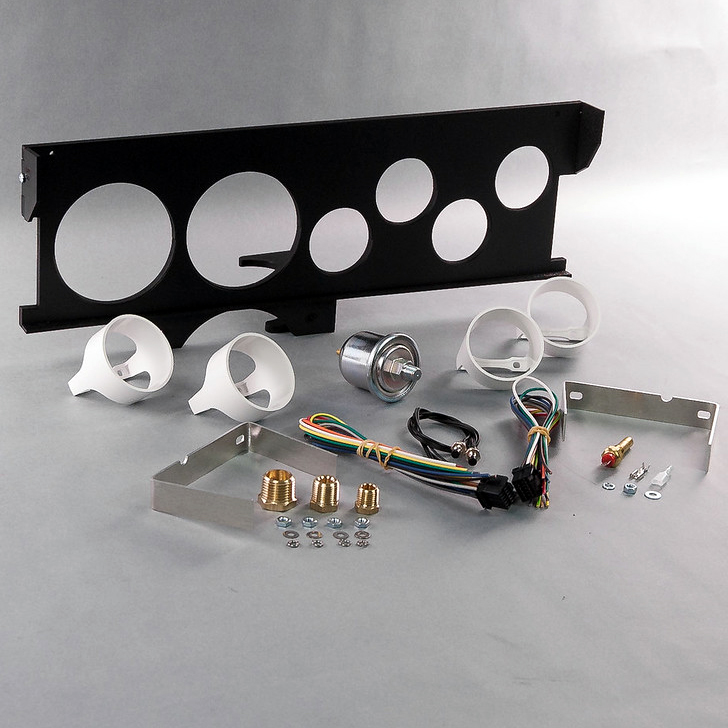

Kit includes:

70-72 Malibu/Chevelle SS Mounting bracket with detailed instructions and mounting hardware

Built-in indicators (Turn signal, hi beam, warning lights)

3-7/16" Speedometer 140 MPH programmable with 1 auxiliary input

3-7/16" Tachometer 8,000 RPM with TWO auxiliary inputs

2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)

Temperature gauge 140-280

Oil pressure gauge 0-100 PSI

Voltmeter 9-17V

2 ea AMP connector harnesses

2 ea Programming button

Bushing kit

Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)

Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

* Speed sender may be required, check your application

NEW DIRECT DRIVE INSTRUCTION BOOK

70-72 MALIBU SWEEP DASH INSTRUCTION BOOKLET
