Product Description

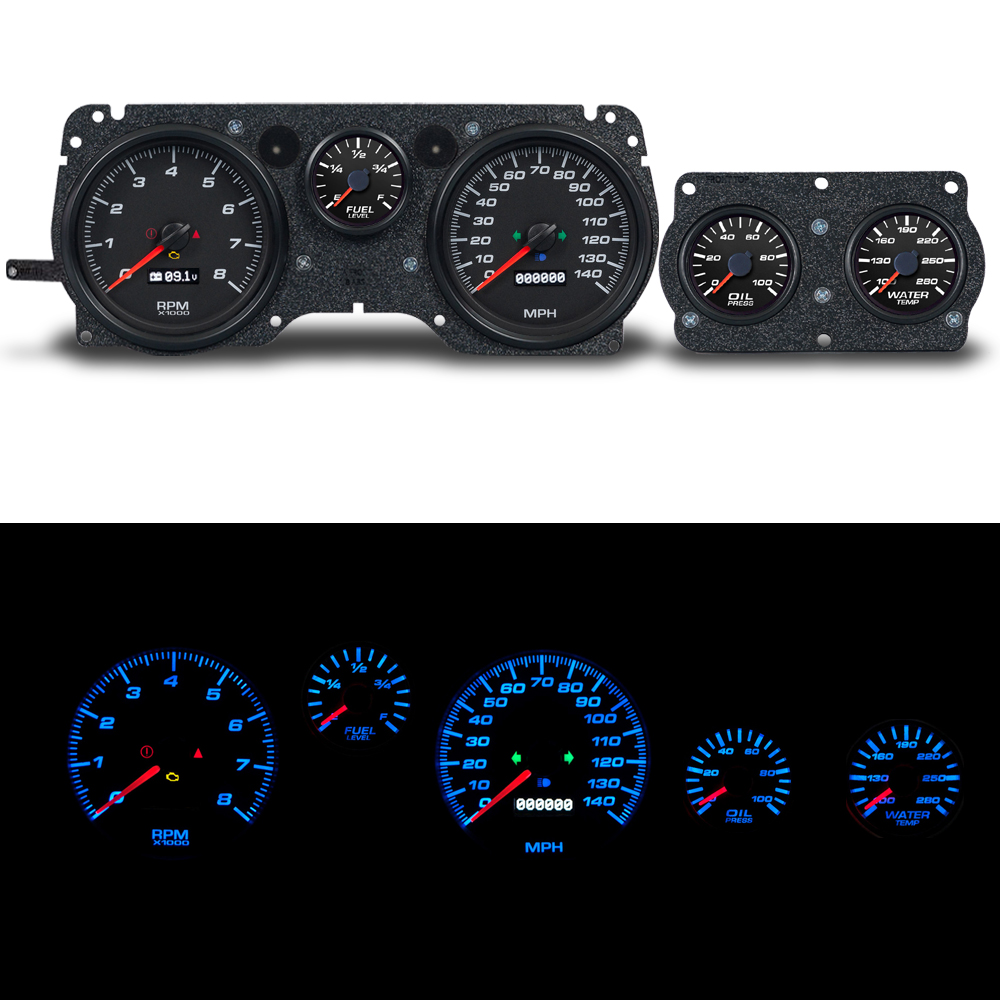

NVU kits for 70-81 Pontiac Firebird update the look of your dash to match the theme of your ride Plus offer updated, modern internals and functions you expect in today's builds. All kits include NVU's exclusive laminate mounting system that installs in the factory mounting holes without cutting up your dash plate. Functional turn signals can be displayed in the factory panel with the included LEDs. We even added a separate LED to light up your wiper switch, just like original! Kits include Speedo, Tach, fuel (factory match 0-90 Ω) , water temp, oil pressure and internally displayed voltmeter (on OLED Screen). Bushings, brackets, temperature sender, pressure sender, AMP harnesses and programming buttons also included in the kit.
NVU Performance II gauges are a real upgrade to any dash. Modern OE technology behind the scenes all backed by Phoenix technology. Bold blue backlit graphics say updated but without going over the top. Backlit pointers, full sweep minor gauges and glass lenses.
More on our phoenix platform can be found HERE>

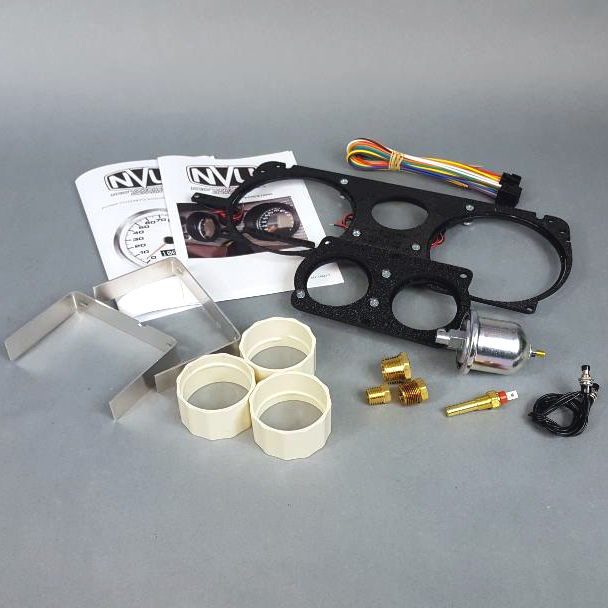

Included in the kit:
70-81 Firebird mounting bracket
Built-in indicators (Turn signal, hi beam, warning lights)
4-3/8" Speedometer 140 MPH programmable with 1 auxiliary input
4-3/8" Tachometer 8,000 RPM with TWO auxiliary inputs
2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)
Temperature gauge 140-280 F
Oil pressure gauge 0-100 PSI
Voltmeter 9-17V
2 ea AMP connector harnesses
2 ea Programming buttons
Bushing kit
Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)
Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)
73-87 GM Truck bracket
