Product Description

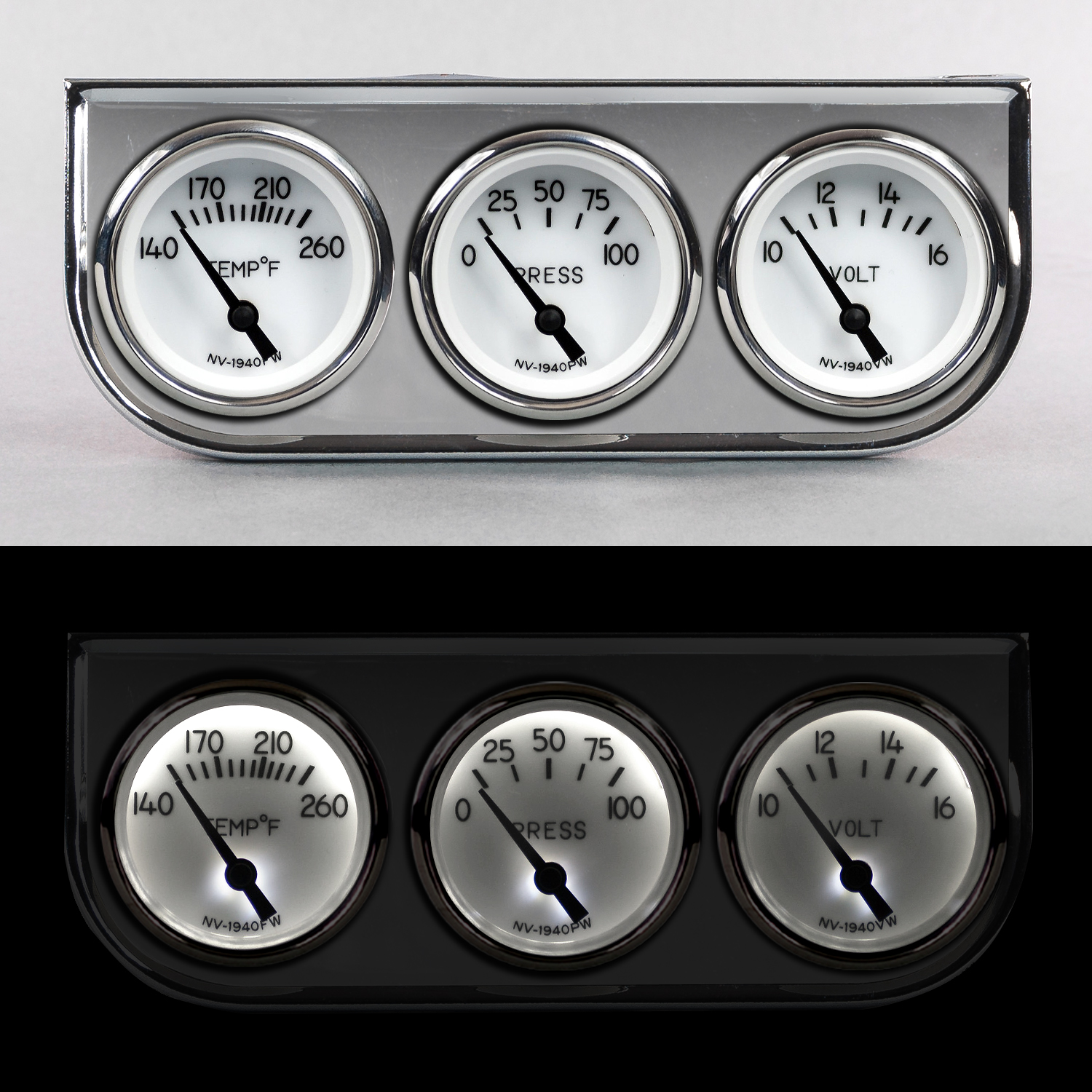

New Vintage USA’s Premium 3- gauge under dash kits bring some class to your dash without the need for a full cluster upgrade. Why fix what’s not broken right? Choose from a wide variety of styles that fit the theme of your ride, vintage, retro or modern, it’s all up to you!

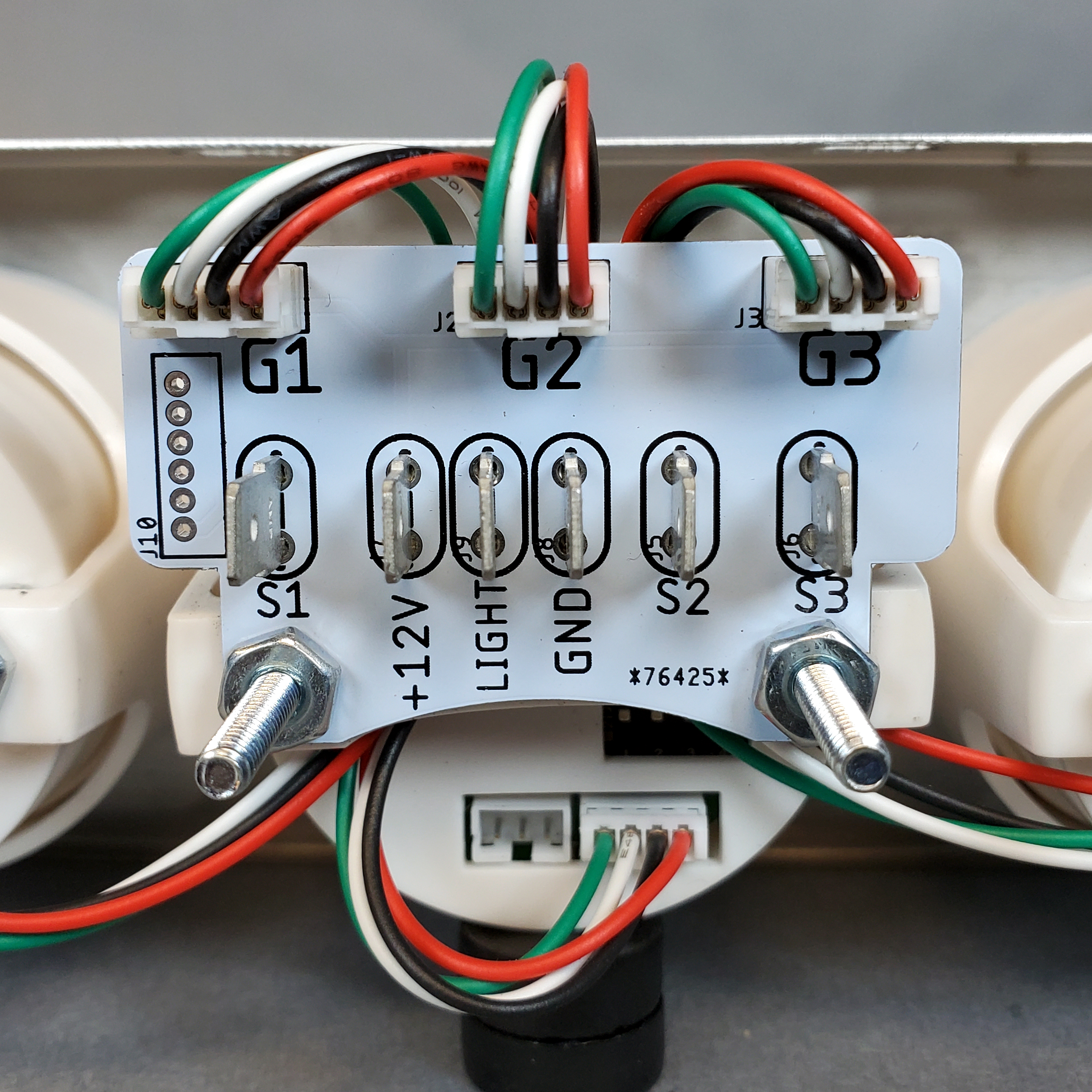

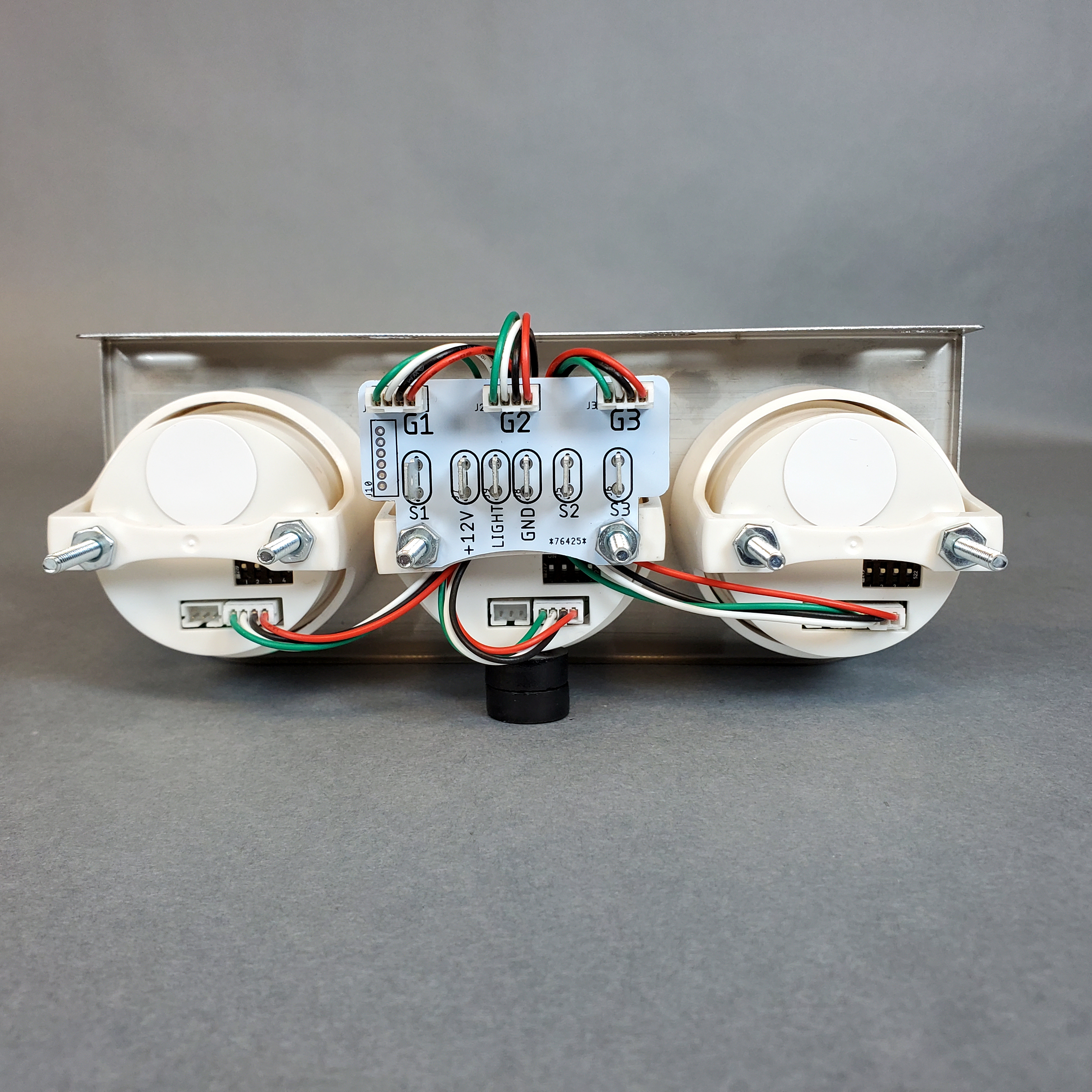

All 3-gauge kits are built on our military based A-90 platform featuring microprocessor driven stepper motors, LED lighting and fully customizable inputs. Easy to wire using our exclusive included jumper board for the cleanest connections available.
Kits operate on virtually any vehicle/engine combination, just wire up power, ground, lights, install the senders and enjoy!

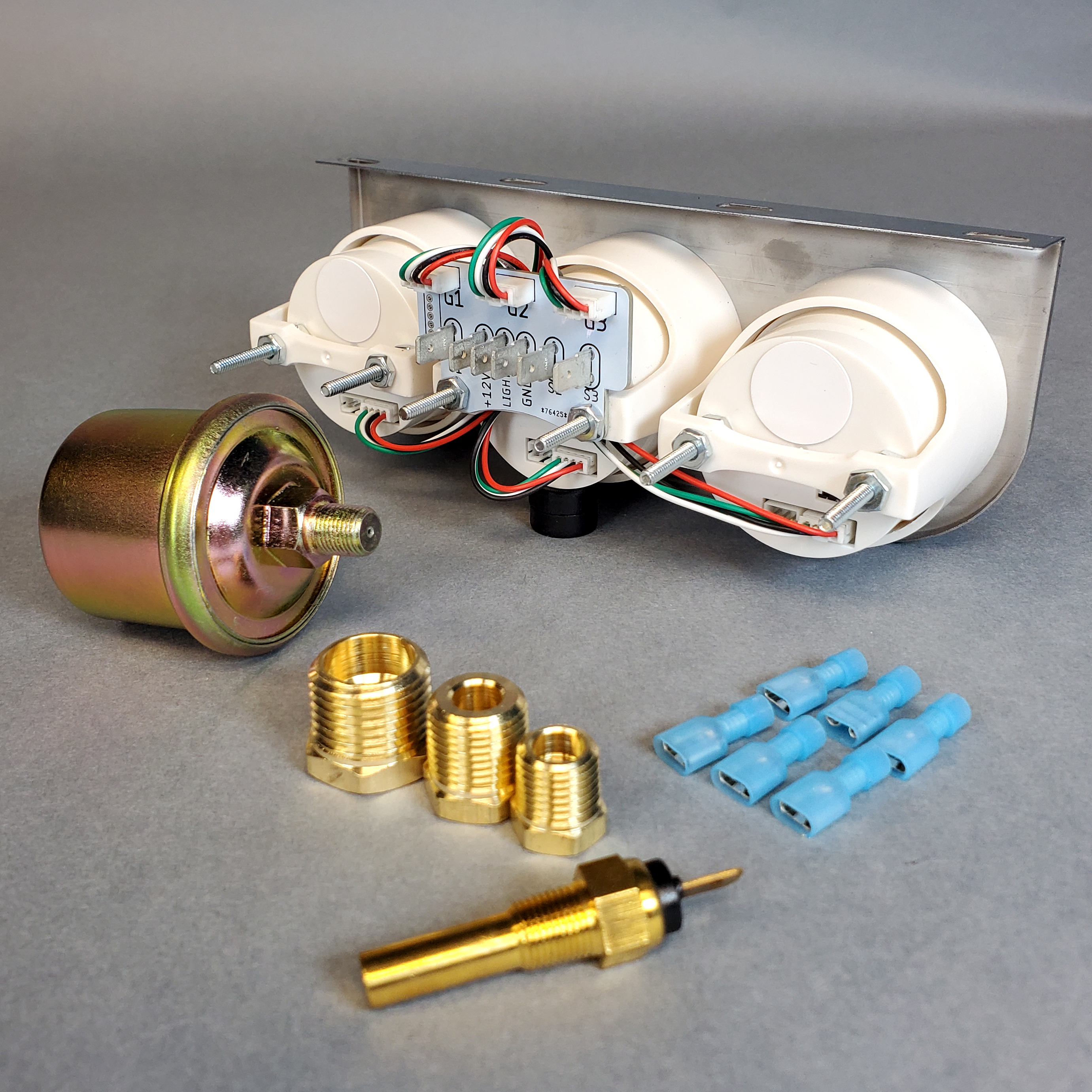

Kits include:
3-gauge mounting panel with hardware
Water temperature gauge, 100-280F
Oil Pressure gauge, 0-100 PSI
Voltmeter, 9-17V
Oil pressure sender, 1/8-27 NPT thread
Temperature sender, 1/8-27 NPT thread
Bushing kit with ¼, 3/8 and ½” adapters
3 Back clamps
1 Hardware kit
3 Jumper harnesses
1 Jumper board
Detailed instructions
