Product Description
CREATE YOUR OWN CUSTOM DESIGN BY CLICKING HERE

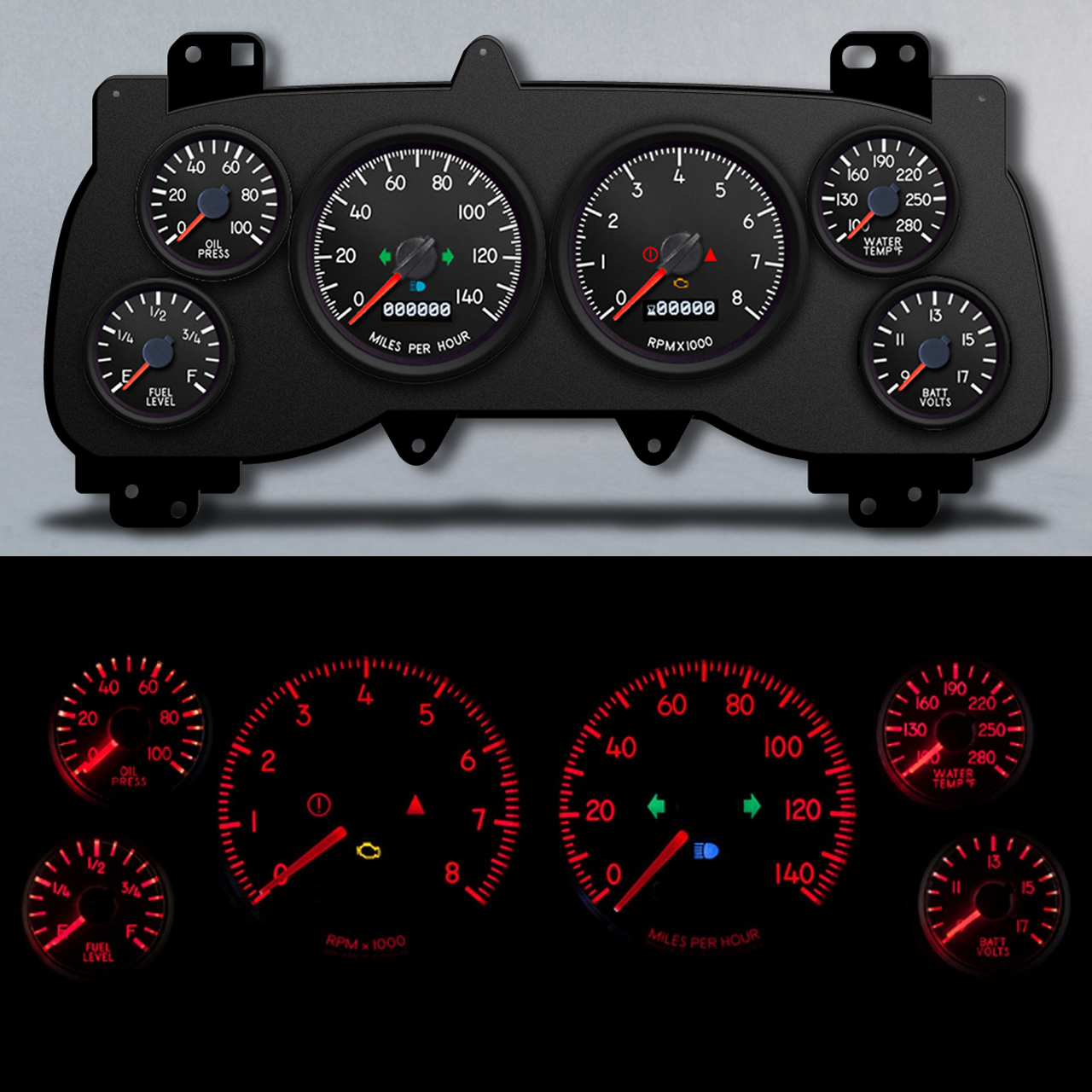

Kits for 2nd Gen Dodge ram fit 99-01 Light Duty and 00-02 Heavy duty dashes with the one piece cluster face. Bring your Ram dash up to date and match the theme of your build with NVU's kits to replace the factory cluster. Finally a solution for Ram truck owners that have been building their trucks or just want a mild upgrade. Kit fits automatic and manual clusters, gas and diesel kits are available.
AVIATOR instruments deliver the information you need to monitor your vitals in a clean, easy to read package that is designed to be rugged and take the abuse you throw at your high-performance vehicle, whether it’s race, off road or daily driver. LED backlit glow red at night for for minimal pupil dilation at night. Instruments feature hard-shock case and spin-on back clamp with vibration dampening O-ring, waterproof up to 35 PSI from the front, The AVAITOR instrument line will not only add distinction to the dash but will also make sure your ride is operating properly in any conditions. Topped with black bezels and flat glass for easy viewing in open-cockpit vehicles.
Looks are only skin deep; all Performance II instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6-gauge kits with OLED screens feature Phoenix Direct Drive technology, by far the easiest way to wire up a 6-gauge kit

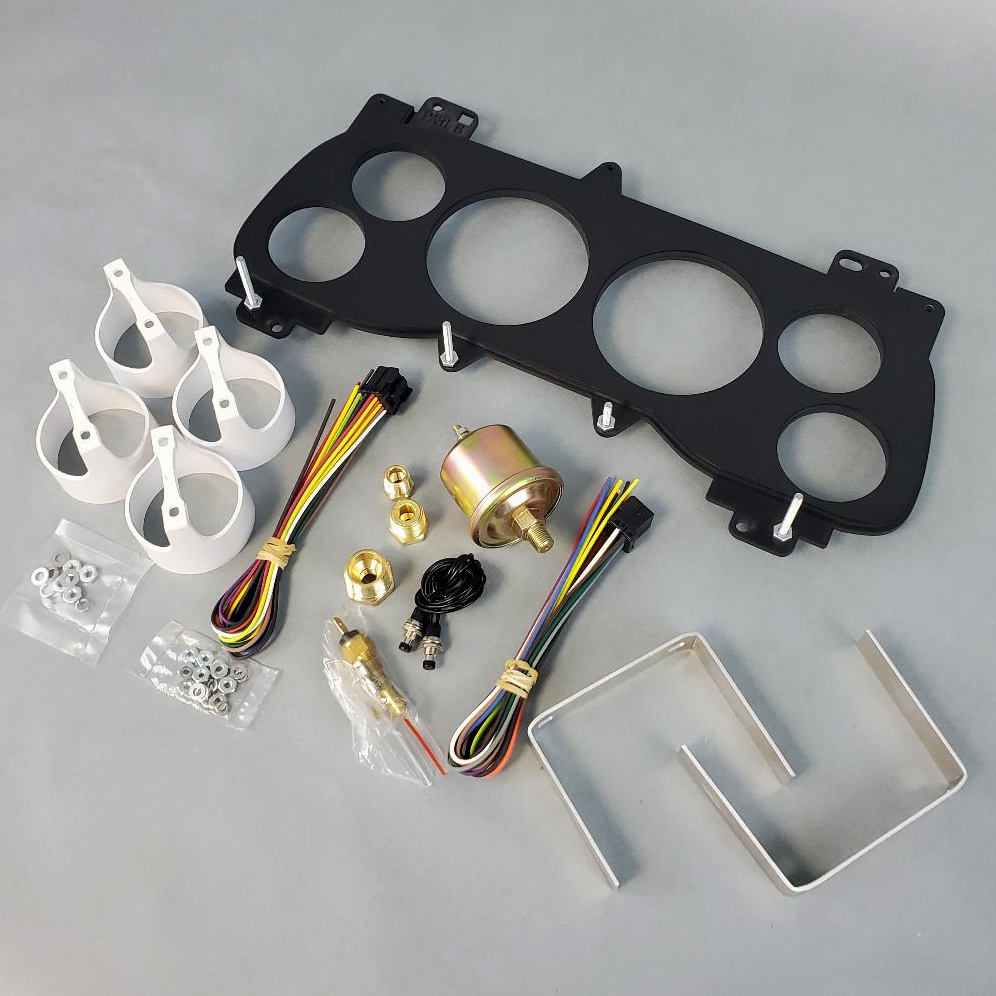

Included in the kit:
99-01 Ram F/S Truck mounting bracket
Built-in indicators (Turn signal, hi beam, warning lights)
3-7/16" Speedometer 140 MPH programmable with 1 auxiliary input
3-7/16"Tachometer 8,000 RPM with TWO auxiliary inputs
2-1/16" Fuel gauge, programmable (2 ranges; factory-match)
Temperature gauge 140-280
Oil pressure gauge 0-100 PSI
Voltmeter 9-17V
2 ea AMP connector harnesses
2 ea Programming button
Bushing kit
Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)
Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)
* Speed sender may be required, check your application
NEW DIRECT DRIVE INSTRUCTION BOOK
