Product Description
New Vintage gauge packages for A-Body Mopars offer a great new way to upgrade your dash. A . Each kit includes Chrysler fuel gauge (73-10) pressure and temperature senders, adapter bushings, LED lamps for turn signals and high beam and detailed instructions. ABS panels feature more open space for switches, lamps, whatever you need. Panels re-use factory wiper and headlamp switches. Panel installs in factory housing modifications required please see instruction booklet. This method keeps the existing surround intact for a factory finished look.
The first true 60 themed gauge set on the market with a period look and modern stepper motor technology.4-3/8", 3-7/16” and 2-1/16” gauge fit aftermarket dash panels for a professional installation.
Get the best of both worlds-classic looks with modern technology.
AVIATOR instruments deliver the information you need to monitor your vitals in a clean, easy to read package that is designed to be rugged and take the abuse you throw at your high-performance vehicle, whether it’s race, off road or daily driver. LED backlit glow red at night for for minimal pupil dilation at night. Instruments feature hard-shock case and spin-on back clamp with vibration dampening o-ring, waterproof up to 35 PSI from the front,. The AVAITOR instrument line will not only add distinction to the dash but will also make sure your ride is operating properly in any conditions. Topped with black bezels and flat glass for easy viewing in open-cockpit vehicles.
A great choice for a hot rod with a modern twist, Jeeps, off road, pro-touring builds with an aviation theme or any vehicle that demands a military look while maintaining easy visibility at night.
Aviator series instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6 gauge kits with OLED screens feature Phoenix Direct Drive technology, bay far the easiest way to wire up a 6 gauge kit. Learn more about all of the features HERE>>>

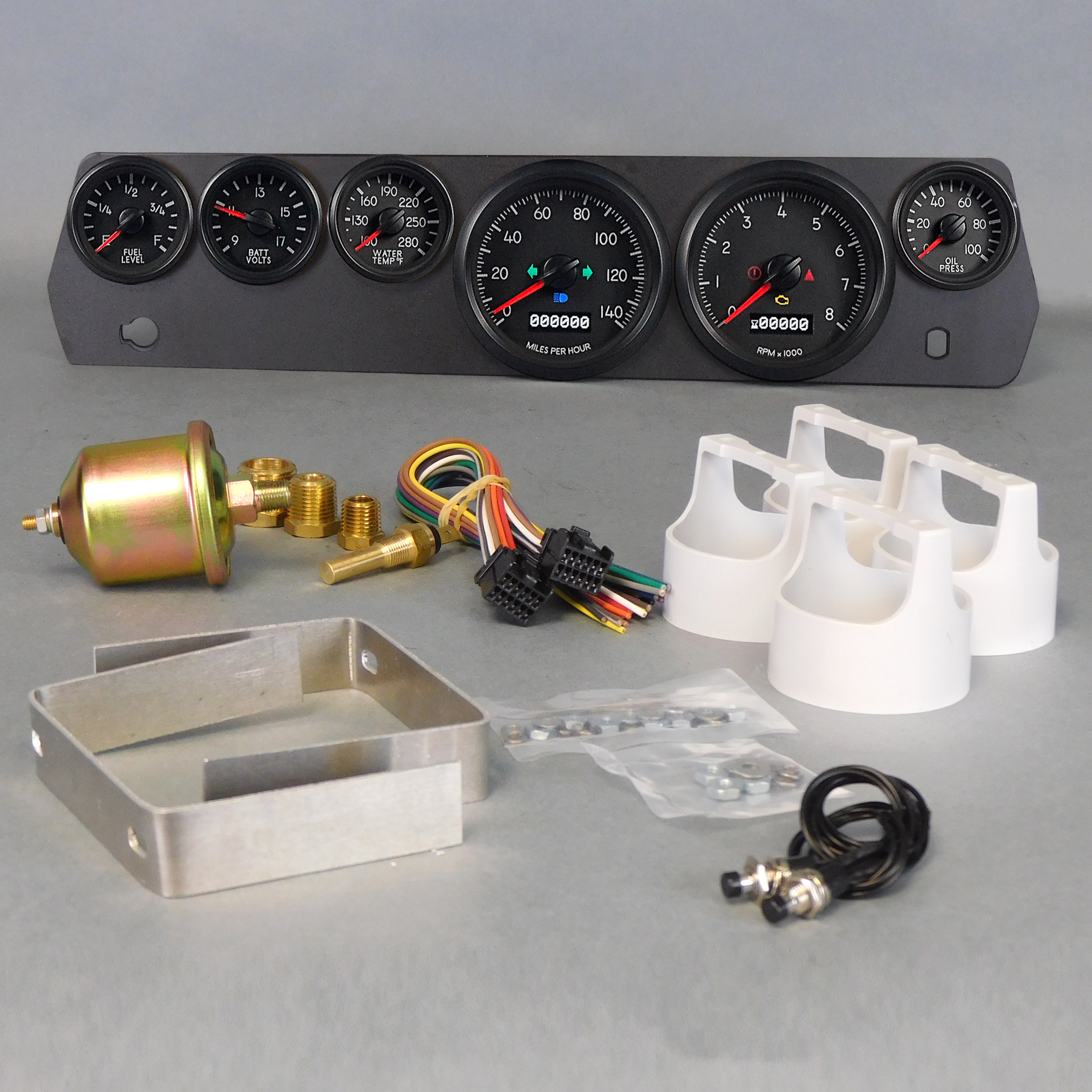

Kits Include:
LED backlighting
Boldstyling
Easy programming and setup
Built-in indicators (Turn signal, hi beam, warning lights)
3-7/16" Speedometer 140 MPH programmable with 1 auxiliary input
3-7/16" Tachometer 8,000 RPM with TWO auxiliary inputs
Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)
Temperature gauge 140-280 F
Oil pressure gauge 0-100 PSI
Voltmeter 9-17 V
2 ea AMP connector harnesses
2 ea Programming buttons
Bushing kit
Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)
Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)
70-76 Mopar A-Body bracket and hardware
*Speed sender may be required, Check your application
