Product Description
New Vintage gauge packages for A-Body Mopars offer a great new way to upgrade your dash. A . Each kit includes Chrysler fuel gauge (73-10) pressure and temperature senders, adapter bushings, LED lamps for turn signals and high beam and detailed instructions. ABS panels feature more open space for switches, lamps, whatever you need. Panels re-use factory wiper and headlamp switches. Panel installs in factory housing modifications required please see instruction booklet. This method keeps the existing surround intact for a factory finished look.
The first true 60 themed gauge set on the market with a period look and modern stepper motor technology.4-3/8", 3-7/16” and 2-1/16” gauge fit aftermarket dash panels for a professional installation.
Get the best of both worlds-classic looks with modern technology.

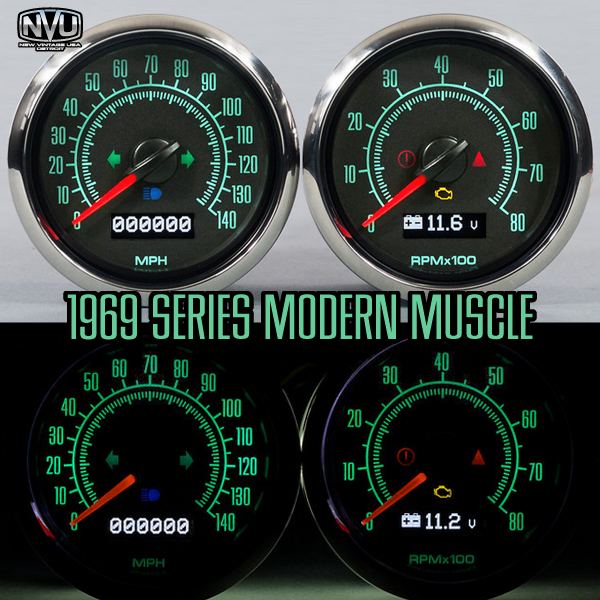

NVU 1969 SERIES are the original backlit muscle car-themed instruments. Bold 60s mint green graphics on a black background with backlit red pointers topped with real glass lenses and hand polished stainless steel bezels. Great for any restoration, resto-mod or build where modern technology and vintage appearance is a must. Perfect for any 60s, 70s, musclecar, gasser, pro-touring dash gauges.
Looks are only skin deep; all 1969 Series instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6 gauge kits with OLED screens feature Phoenix Direct Drive technology, bay far the easiest way to wire up a 6 gauge kit. Learn more about all of the features HERE>>>

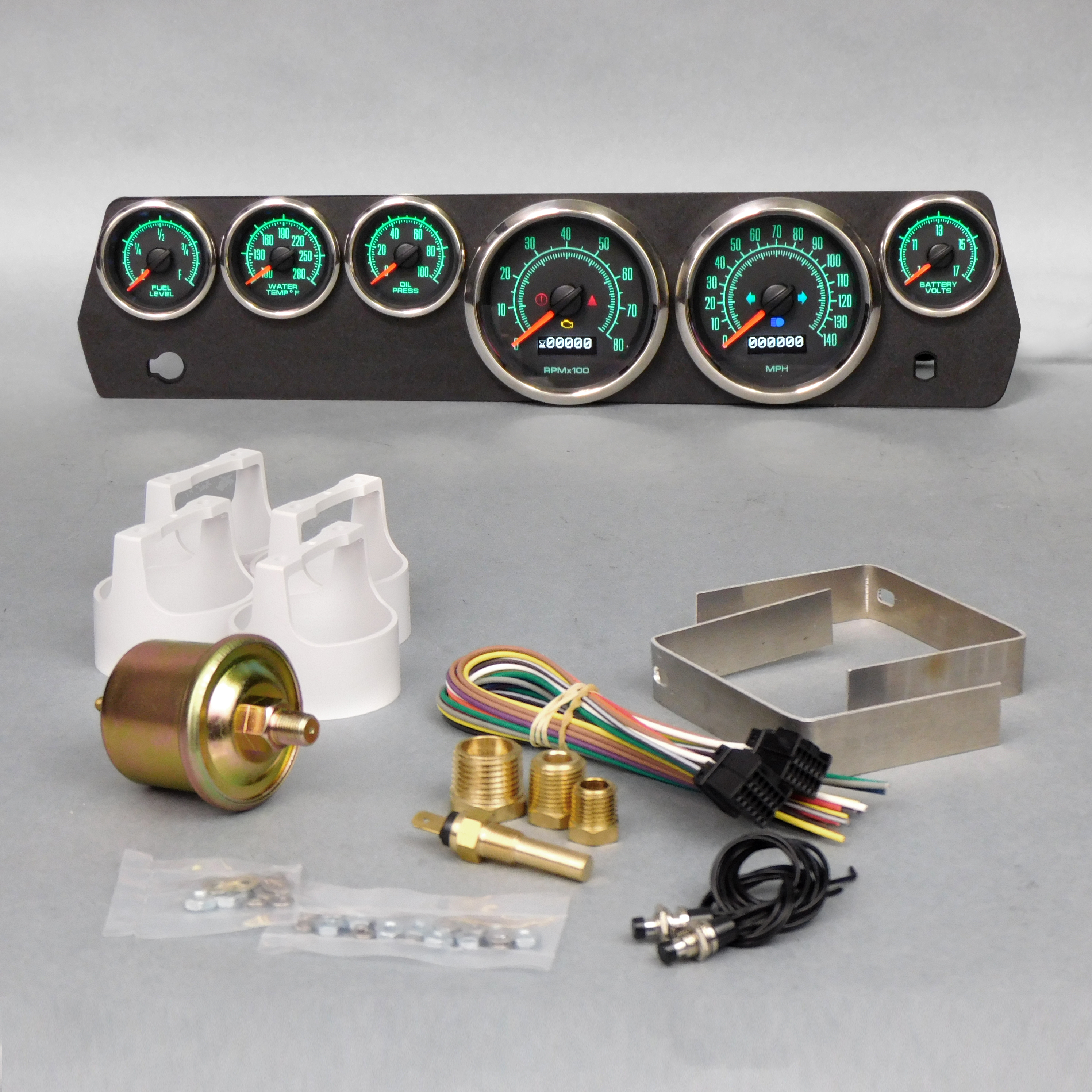

Kits Include:
LED backlighting
Bold styling
Easy programming and setup
Built-in indicators (Turn signal, hi beam, warning lights)
3-7/16" Speedometer 140 MPH programmable with 1 auxiliary input
3-7/16" Tachometer 8,000 RPM with TWO auxiliary inputs
Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)
Temperature gauge 140-280 F
Oil pressure gauge 0-100 PSI
Voltmeter 9-17 V
2 ea AMP connector harnesses
2 ea Programming buttons
Bushing kit
Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)
Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)
70-76 Mopar A-Body bracket and hardware
*Speed sender may be required, Check your application
