Product Description
1967-1968 Mustang gauges and aftermarket kits from New Vintage USA offer the widest selection on the market. With several styles and colors you are sure to find something that suits your build. Choose from the factory-inspired 67 series, or go all-in with the CFR Series. Kits are available in DIY (Do It Yourself), Assembled and wired, LED backlit or old-school incandescent perimeter lit. DIY (Do It Yourself) kits are designed for at home installation of gauges in your existing (or new) bezel. Bolt it together, wire it up and off you go... Includes electronic speedometer, tachometer, oil pressure, water temperature, factory match fuel gauge (73-10 ohm, no sender included use existing sender), temperature and pressure senders with bushing kit, ABS mounting panel, polycarbonate top support, and instructions. Air core kits feature short sweep gauges, and incandescent lighting.

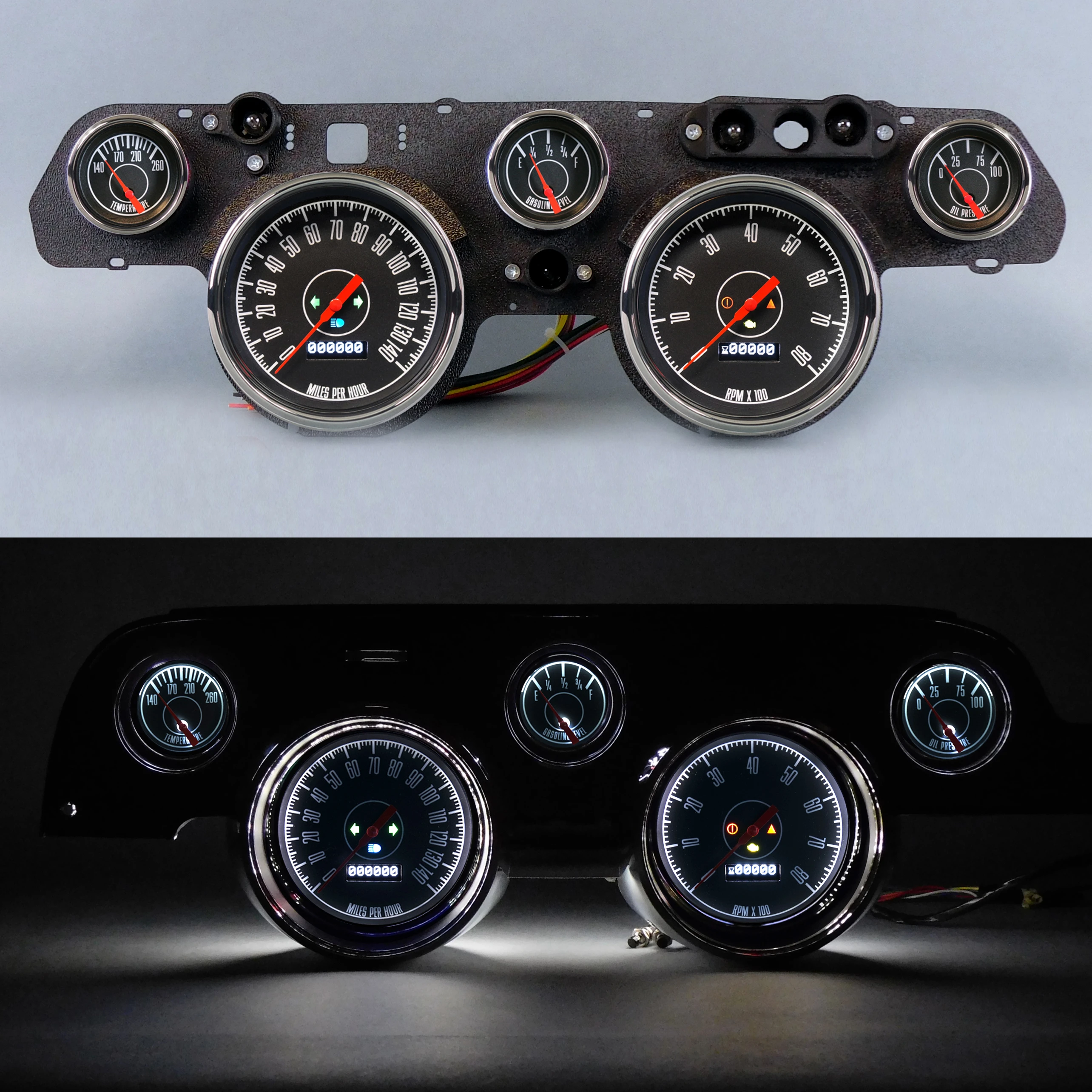

NVU 1967 series gauges are the first instruments on the market with a true mid-60s style. Others have tried to duplicate, but this is the real deal! Wraparound numbers, canted tic marks, all with old-school perimeter lighting for a real 60s look. Stainless steel bezels and domed lenses add a touch of class. Perfect for your musclecar, gasser, dunebuggy, 60s truck; anything that demands that unique American muscle look.
NVU's Phoenix technology behind the scenes drives the gauges with easy to read menu functions, fully programmable inputs for speedo and tach make this the most versatile stand-alone gauge kit on the market! Mo additional filters, adapters or driver modules or boxes, NVU instruments run as-is. New temperature and pressure ranges for today's builds.
Speedometer operates from any speed signal OE, PCM (computer), aftermarket or even our GPS antenna.
Now all kits with Programmable speedometer and tachometer feature NVU's exclusive Phoenix Direct Drive! Easy Driver gauge/minor gauge installation with features found in modern OE vehicles. Learn More about all of the great Phoenix Direct-drive features HERE >>>

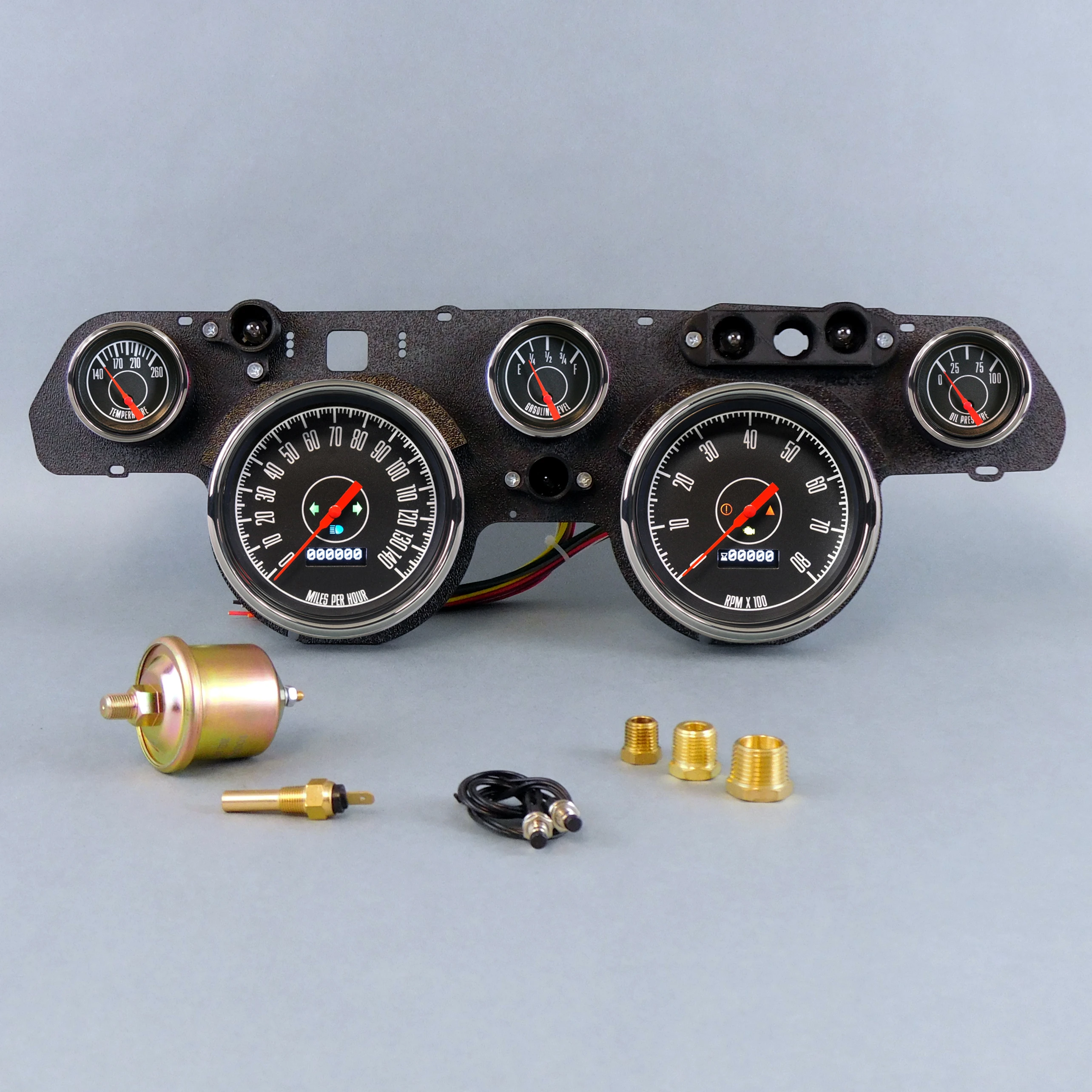

Kit includes:
67-68 Mustang mounting bracket kit
Speedometer 4-3/8" 140 MPH with Phoenix features and one additional analog input
Tachometer 4-3/8" 8,000 RPM with Phoenix features and 2 additional inputs
2-1/16" Fuel gauge 73-10 Ω (Ford factory match)
2-1/16" Oil pressure 0-100 PSI
2-1/16" Water temp 140-280 F
Back-clamps
Incandescent bulbs
2 ea AMP connectors
Water temperature sender Hi Match
Oil pressure sender 240-33Ω 1/8-27 NPT
Bushing kit 1/8-27 NPT to 1/4", 3/8", 1/2"
4 ea indicator bulb assemblies
1 ea polycarbonate top adapter
*SPEED SENDER MAY BE REQUIRED CHECK YOUR APPLICATION
