Product Description
New Vintage USA complete gauge packages for 1973-1987 GM full size trucks are designed to install in the factory location and update the style and functions in the dash.
Kits include NVU exclusive mounting bracket and hardware, 4-3/8" programmable speedometer, 4-3/8" programmable tachometer operates on any cylinder configuration, 2-1/16" oil pressure, water temperature, volt and 0-90 fuel gauge. (0-90 ohm factory match fuel gauge utilizes stock sender-not included). Sender bushings, jumper wiring harnesses where required and programming button.
Exclusively from NVU!
Reignite the timeless charm of the 70s and 80s with the NVU M-102 series – a groundbreaking leap in dash aesthetics. Immerse yourself in the captivating blend of retro inspiration and modern engineering, meticulously crafted to infuse your ride with an irresistible allure echoing the era that left an indelible mark.
Unveil Iconic Essence
The M-102 series breathes life into the cherished design ethos of the 70s and 80s, capturing the essence that defined generations. Drawing from classics, NVU reimagines these iconic styles through a contemporary lens, presenting an artistic homage to the past while embracing future aspirations.
Elevate Aesthetics with Bold Graphics
Bold graphics revive the spirit of the past in a fresh and captivating manner. Meticulously designed, each detail blends nostalgia with contemporary flair, transforming your dashboard into a work of art that's more than an instrument.
LED backlighting
Bold styling
Easy programming and setup
Built-in indicators (Turn signal, hi beam, warning lights)
4-3/8" Speedometer 140 MPH programmable with 1 auxiliary input
4-3/8" Tachometer 8,000 RPM with TWO auxiliary inputs
2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)
Temperature gauge 140-280 F
Oil pressure gauge 0-100 PSI
Voltmeter 9-17V
2 ea AMP connector harnesses
2 ea Programming buttons

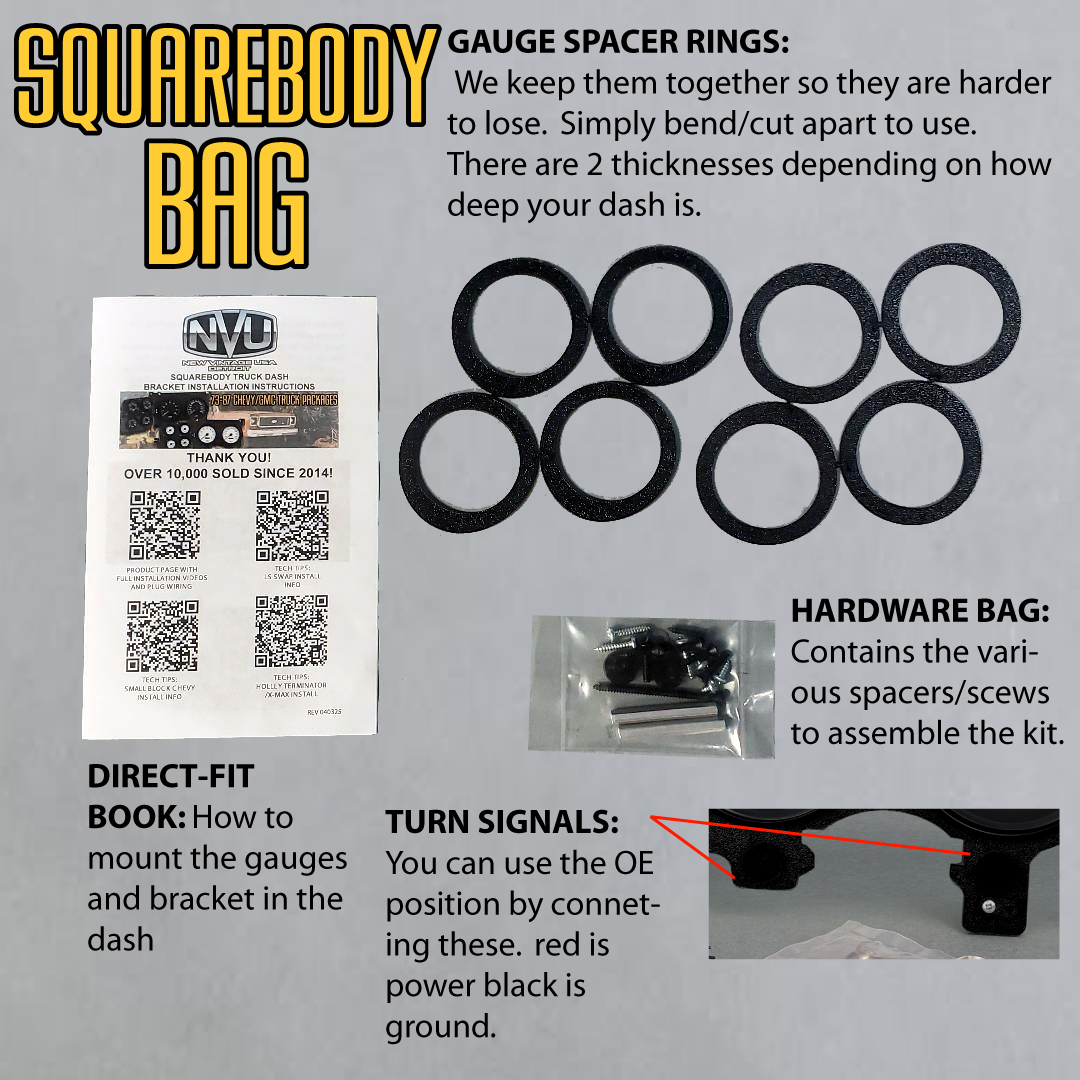

Bushing kit
Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)
Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)
73-87 GM Truck bracket
73-87 GM TRUCK BRACKET BOOKLET
