Product Description
NVU kits for late C3 Corvette (78-82) upgrade not only the function but the style of the dash as well. Choose from several Bold graphic packages to bring your interior into the 21st century! Kits are installed in the factory location using NVU's exclusive mounting brackets. Console gauges fit in stock location behind the bezel and an extra filler gauge is included for the 5th opening. need to add on? No problem, just select a matching series gauge and monitor virtually everything. All NVU kits operate on any old school small or big block, modern LS or LT engine and transmissions.
That's not all, our exclusive Phoenix Direct-Drive makes wiring as easy as possible while offering all of the modern features you would expect. Learn more about our Direct drive system HERE>>>

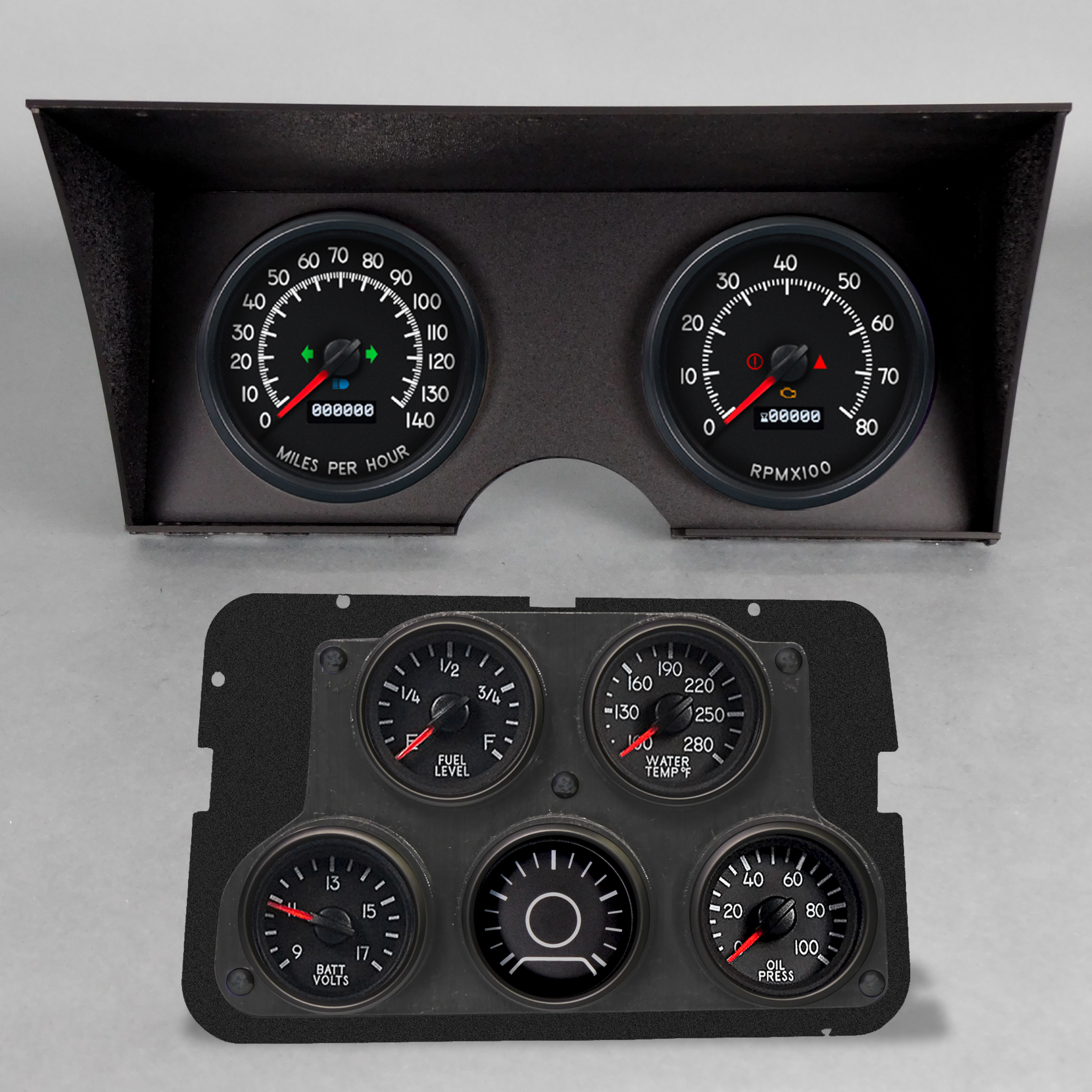

AVIATOR instruments deliver the information you need to monitor your vitals in a clean, easy to read package that is designed to be rugged and take the abuse you throw at your high-performance vehicle, whether it’s race, off road or daily driver. The AVAITOR instrument line will not only add distinction to the dash but will also make sure your ride is operating properly in any conditions. Topped with black bezels and flat glass for easy viewing in open-cockpit vehicles.
A great choice for a hot rod with a modern twist, Jeeps, off road, pro-touring builds with an aviation theme or any vehicle that demands a military look while maintaining easy visibility at night.
Aviator series instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6-gauge kits with OLED screens feature Phoenix Direct Drive technology, by far the easiest way to wire up a 6-gauge kit.

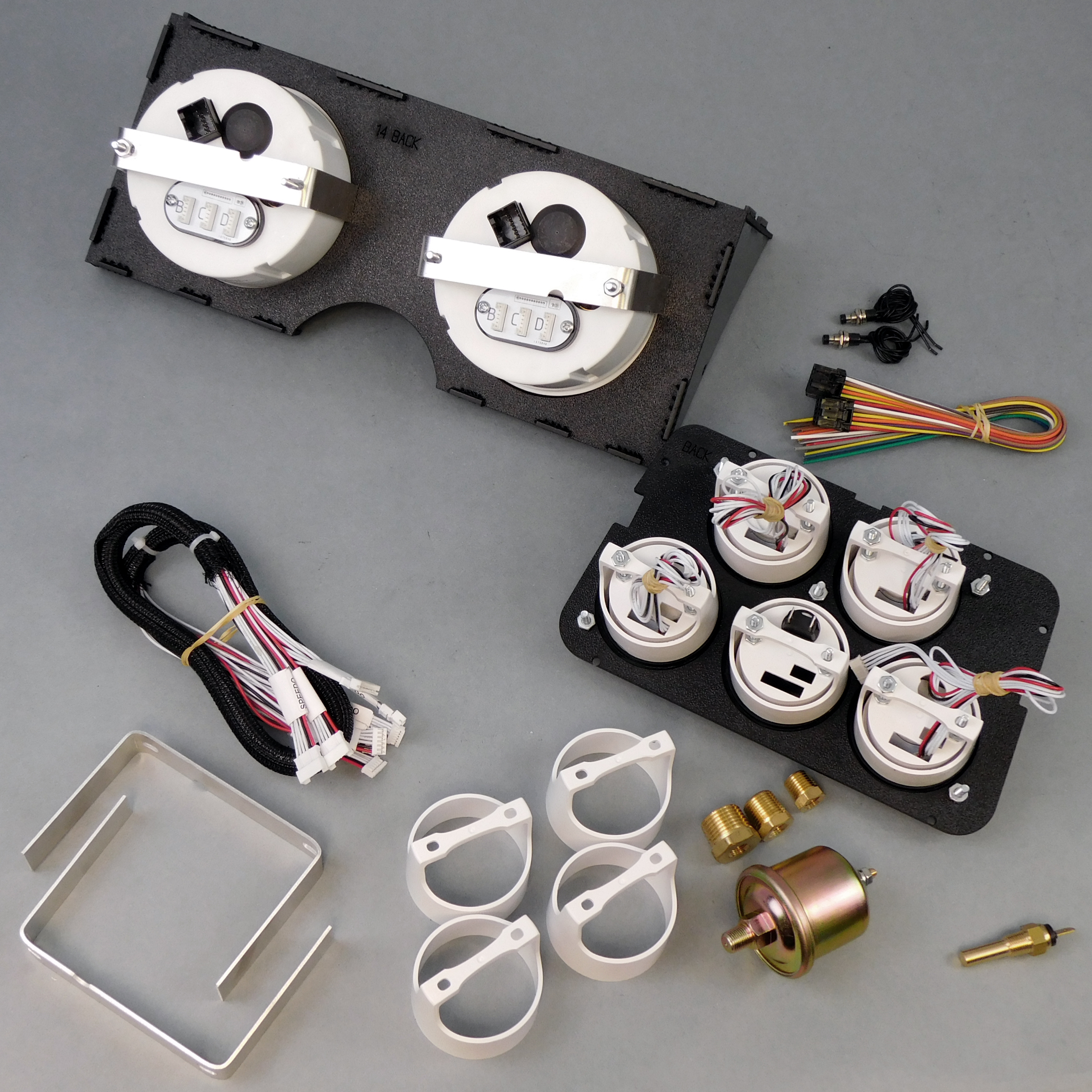

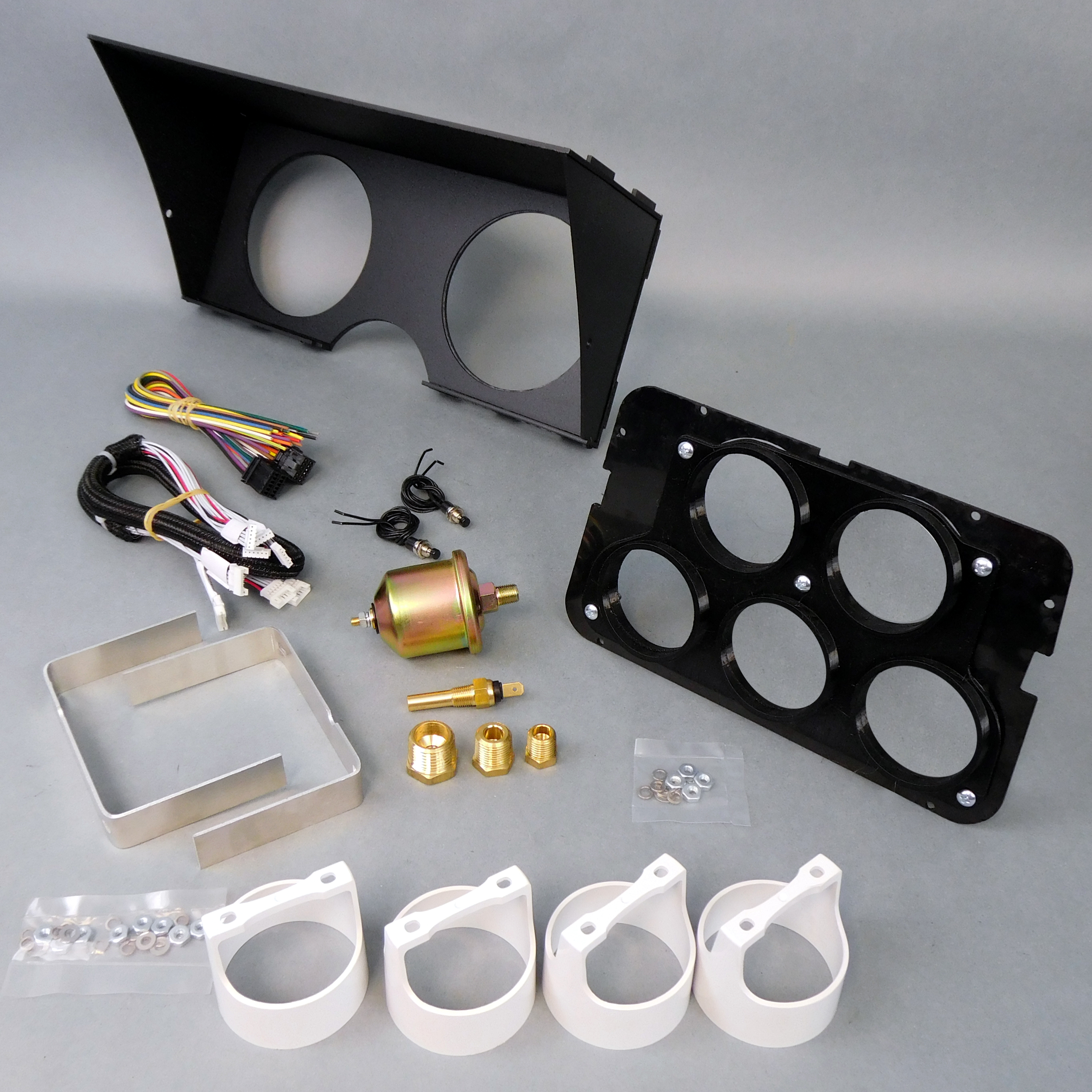

Kits include:
C3 (late) Speedometer and tachometer mounting bracket.

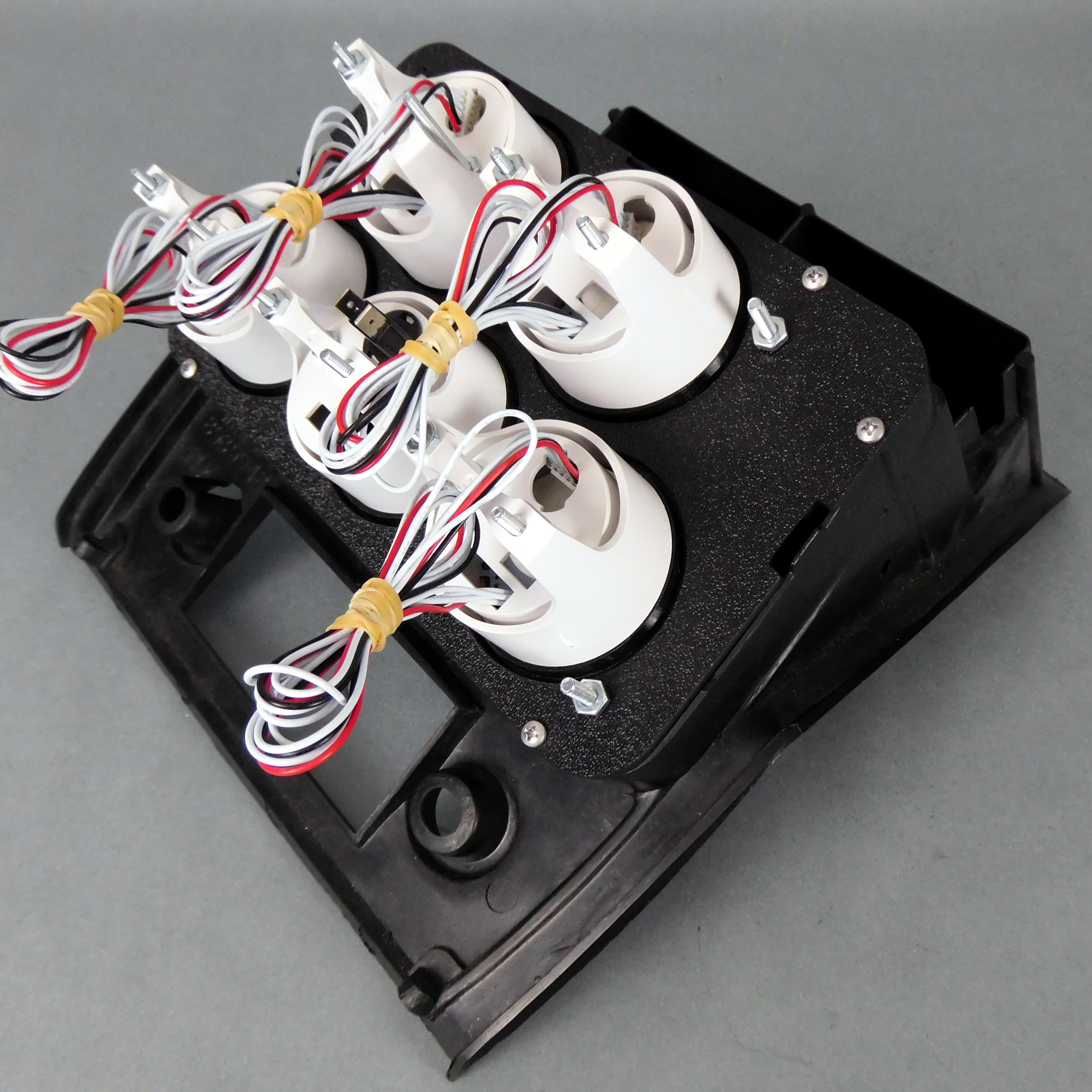

C3 Console mounting bracket
C3 console block out pieces
Speedometer 4-3/8"
Tachometer 4-3/8"
Fuel gauge 2-1/16" (0-90 Ω)
Water Temperature gauge 2-1/16"
Oil pressure gauge 2-1/16"
Voltmeter 2-1/16"
Direct drive extension harnesses
Oil pressure sender
Temperature sender
Bushing kit
Programming buttons
AMP harnesses
Back clamps
Gauge mounting hardware
** Speed sender may be required--not included please check your application
MOUNTING BRACKET INSTRUCTION BOOKLET
