Product Description
This kit qualifies for our free Diesel tach upgrade! Just select 4K diesel tach in the options at the bottom of this page. To learn more about the free diesel tach upgrade please click HERE>

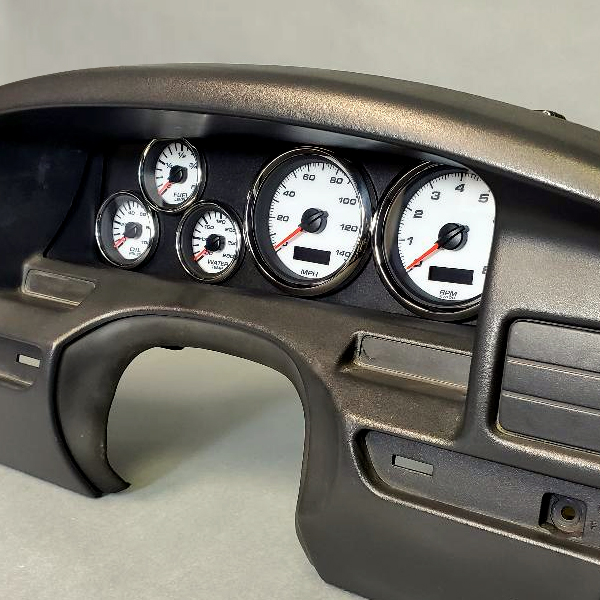

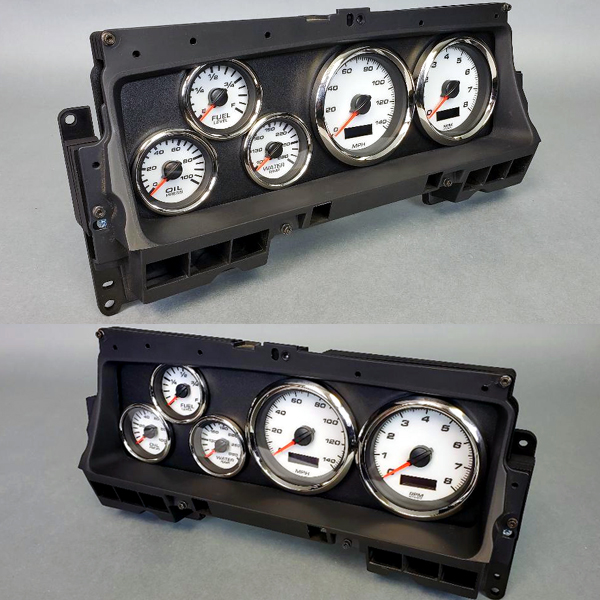

Been looking to upgrade that cluster in your F-Series to bring it into this century? Kits for 92-96 Ford Full Size may be just way you are looking for. NVU's unique mounting bracket allows for installation of any NVU gauge style. Fits in the stock location for a clean professional look. All Phoenix Direct Drive kits feature turn signals, hi beam and warning lights built right into the instruments. Select the style that fits the theme of your build, with the widest range of options available anywhere! Kits include a 5- gauge package with volts and other functions displays on the Phoenix Platform's unique OLED screens.
BRACKET INSTALLATION INSTRUCTIONS
Want to learn more about NVU Direct Drive, Click HERE>>

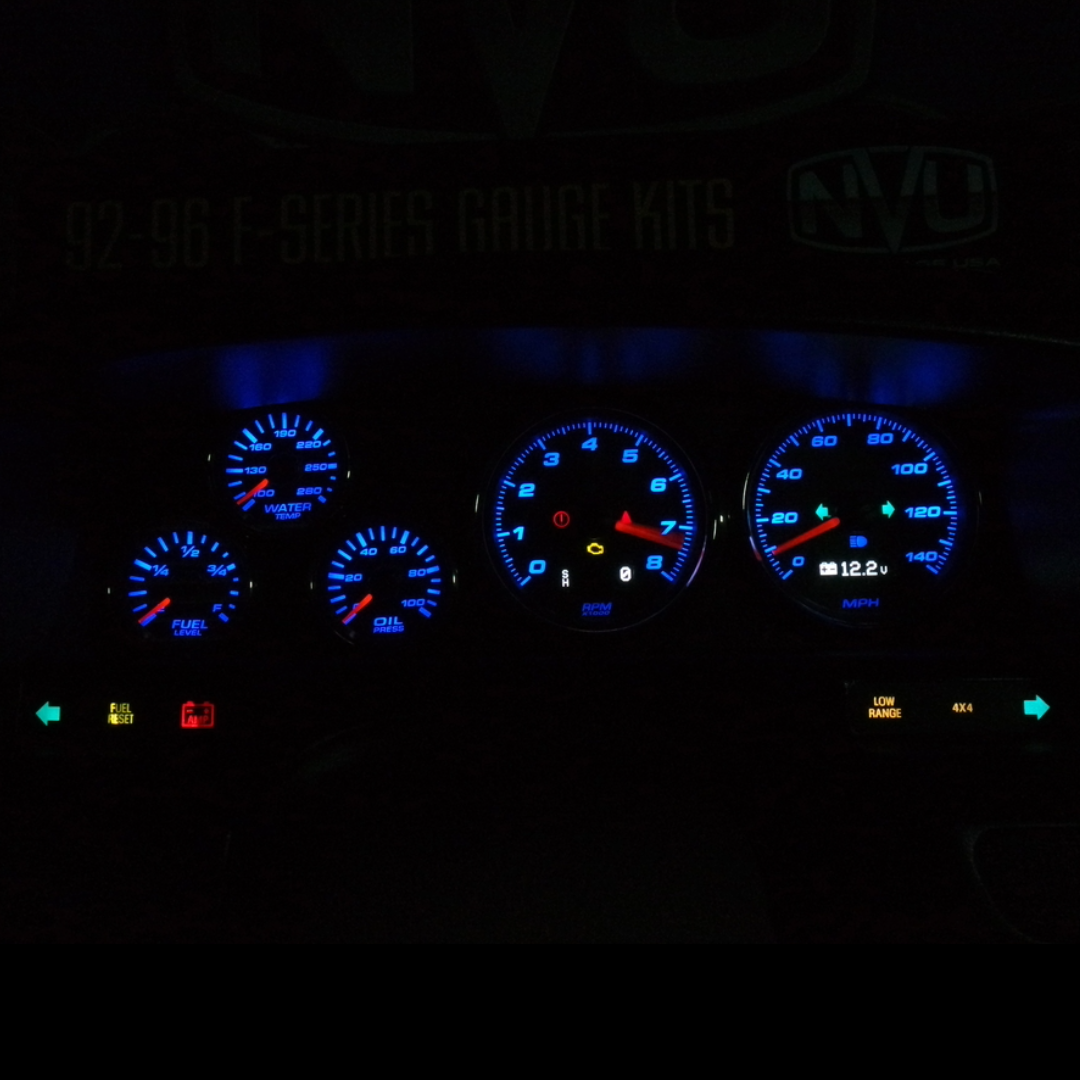

NVU Performance II gauges are a real upgrade to any dash. Modern OE technology behind the scenes all backed by Phoenix technology. Bold blue backlit graphics say updated but without going over the top. Backlit pointers, full sweep minor gauges and glass lenses.

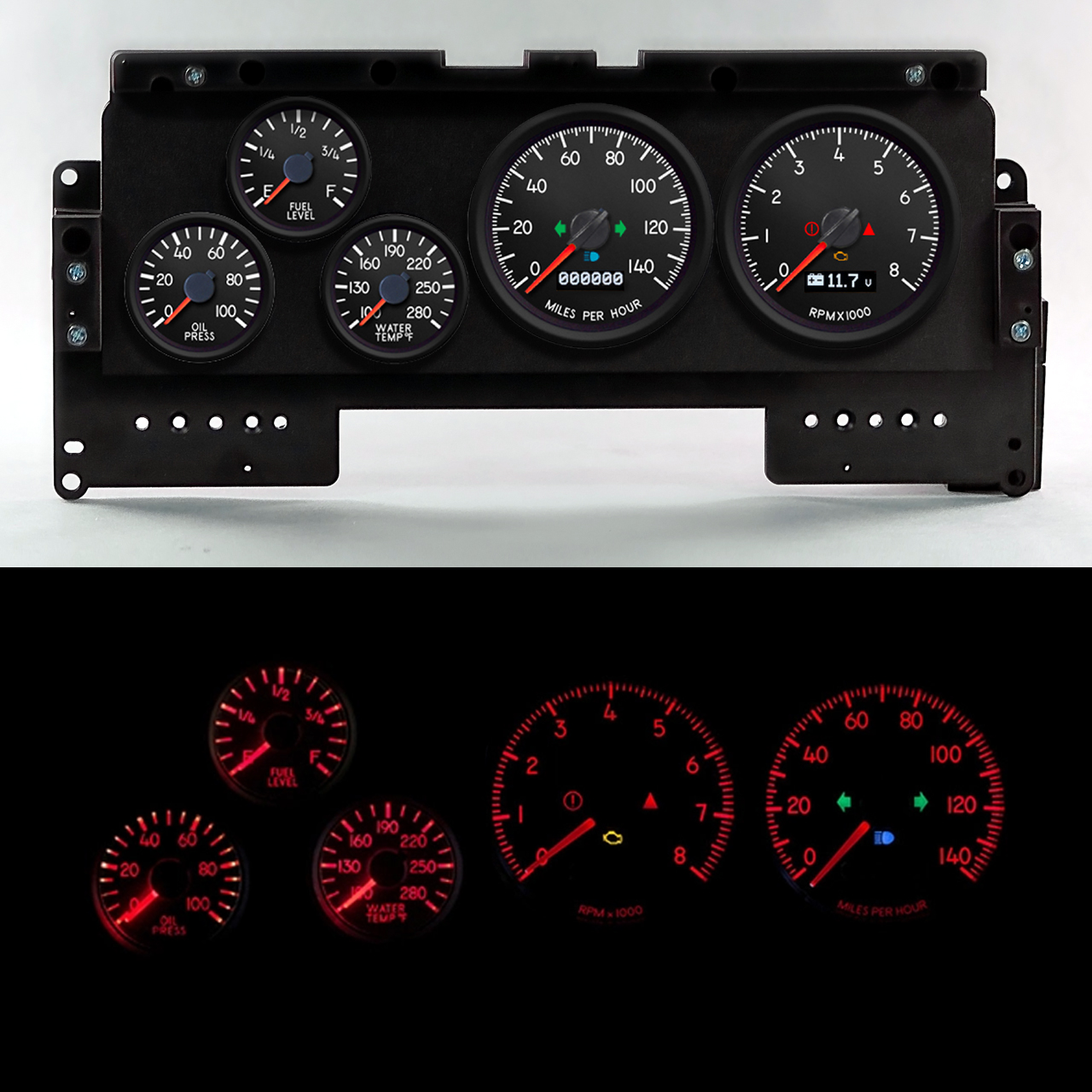

AVIATOR instruments deliver the information you need to monitor your vitals in a clean, easy to read package that is designed to be rugged and take the abuse you throw at your high-performance vehicle, whether it’s race, off road or daily driver. LED backlit glow red at night for for minimal pupil dilation at night. Instruments feature hard-shock case and waterproof up to 35 PSI from the front,. The AVAITOR instrument line will not only add distinction to the dash but will also make sure your ride is operating properly in any conditions. Topped with black bezels and flat glass for easy viewing in open-cockpit vehicles.
Looks are only skin deep; all Performance instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6 gauge kits with OLED screens feature Phoenix Direct Drive technology, bay far the easiest way to wire up a gauge kit.

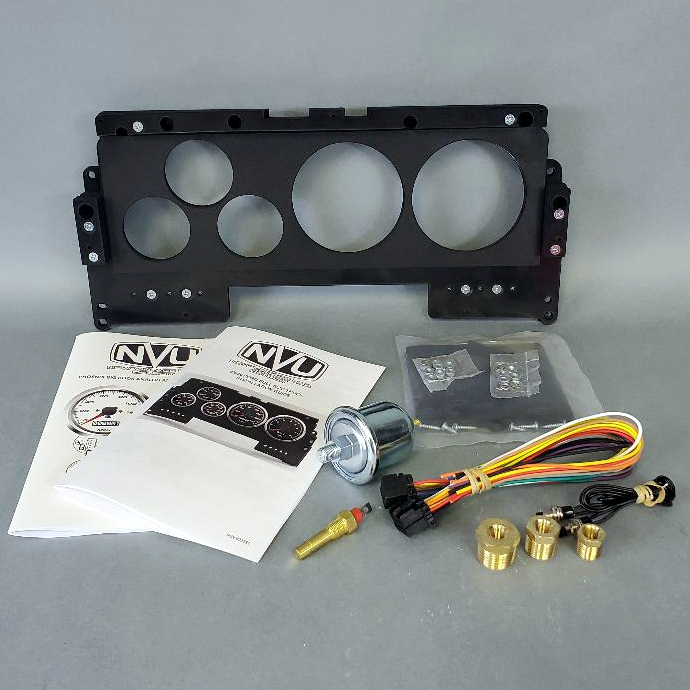

Included in the kit:
87-91 Ford F/S Truck mounting bracket
Built-in indicators (Turn signal, hi beam, warning lights)
3-7/16" Speedometer 140 MPH programmable with 1 auxiliary input
3-7/16"Tachometer 8,000 RPM with TWO auxiliary inputs
2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)
Temperature gauge 140-280
Oil pressure gauge 0-100 PSI
2 ea AMP connector harnesses
2 ea Programming button
Bushing kit
Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)
Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)
* Speed sender may be required, check your application
