Product Description
Gauge kits for Gen II Camaro fit all dashes from 70-78 fitting in the factory location. NVU’s exclusive CNC cut ABS bracket features full adjustability for to fit those older dashes that may not be so straight anymore! Gauges mount in any location offering you flexibility in where and how you want to monitor the vehicle’s vitals. Choose from several of NVU’s BOLD styles to make that dash stand out in a way that fits your ride’s look.
Instruments can operate on virtually any engine configuration from old-school small blocks to modern LS and LT PCMs all without any boxes, module or drivers!
Exclusive Phoenix Direct Drive! Easy Driver gauge/minor gauge installation with features found in modern OE vehicles. Learn More about all the great Phoenix Direct-drive features HERE >>>

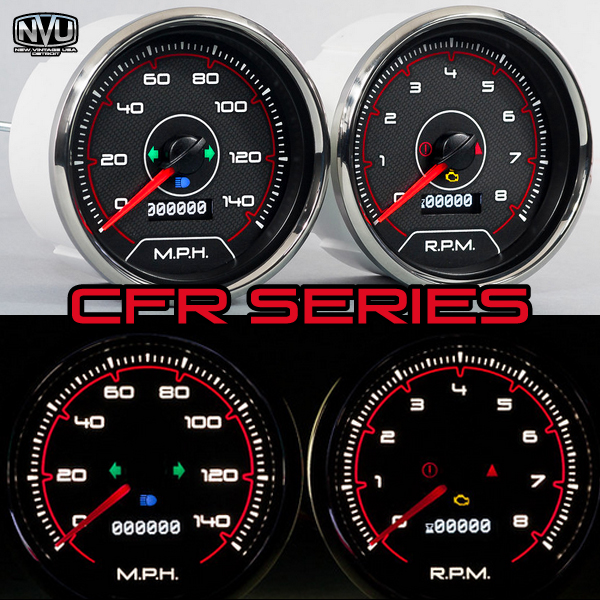

CFR series instruments bring a new level of design, technology and features to the aftermarket. Exotic muscle graphics incorporating textures and colors in a way that says high-class, high tech and performance all at the same time. Textured inner dial with colored accents and bold numbers will make your dash stand out. Great for any resto-mod or pro-touring build. Topped with waterproof glass lenses and stainless bezels, the CFR series is sure to get your attention while monitoring vital components. Any build that demands exotic, high tech design will set the bar for dash design with the CFR series instruments.
CFR series instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6-gauge kits with OLED screens feature Phoenix Direct Drive technology, by far the easiest way to wire up a 6-gauge kit.

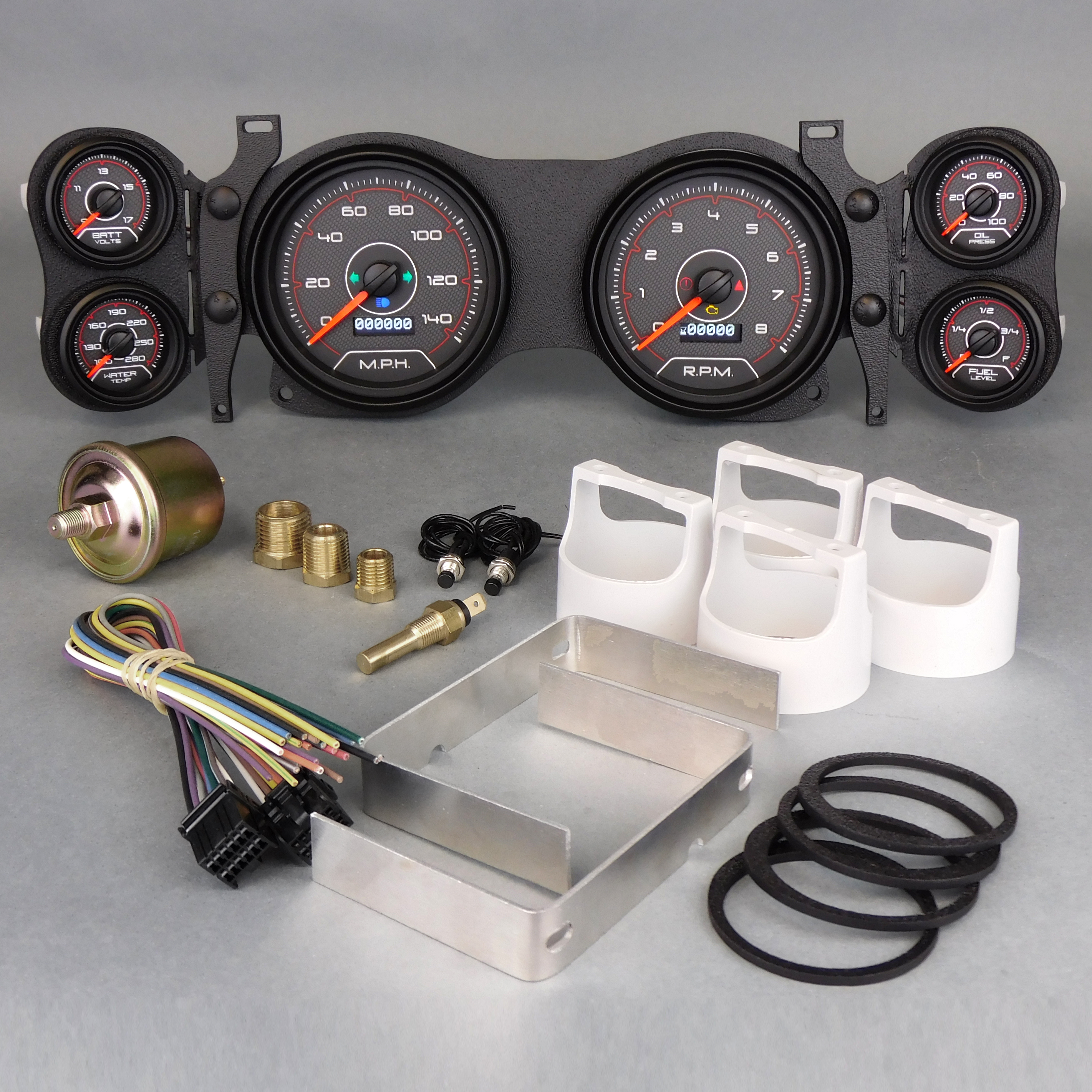

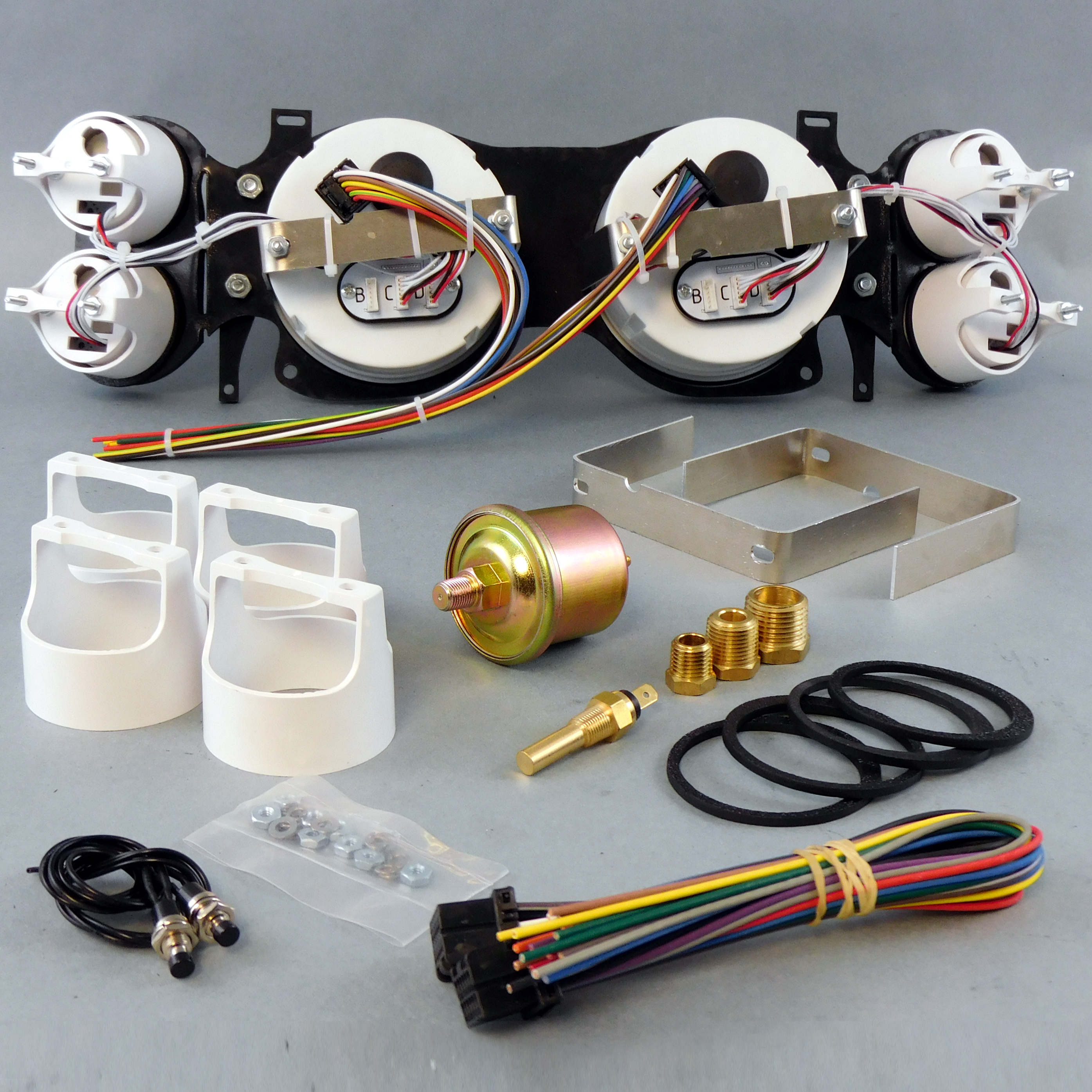

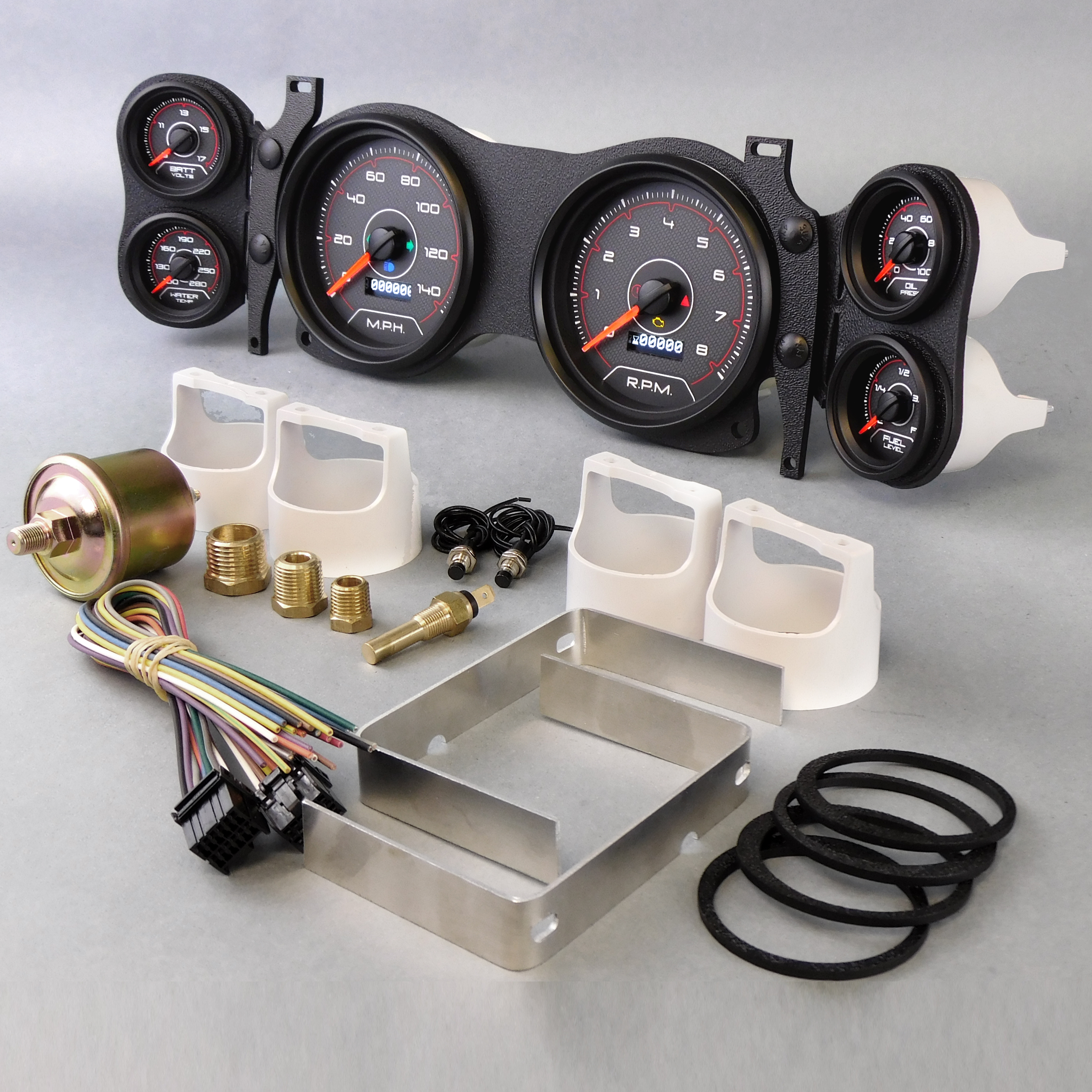

Kit includes:
Gen II (70-78) Camaro mounting bracket kit
Speedometer 4-3/8" 140 MPH with Phoenix features and one additional analog input
Tachometer 4-3/8" 8,000 RPM with Phoenix features and 2 additional inputs
2-1/16" Fuel gauge 0-90 Ω (GM factory match)
2-1/16" Voltmeter 10-16V
2-1/16" Oil pressure 0-100 PSI
2-1/16" Water temp 140-280 F
Back-clamps
2 ea AMP connectors
Water temperature sender Hi Match
Oil pressure sender 240-33Ω 1/8-27 NPT
Bushing kit 1/8-27 NPT to 1/4", 3/8", 1/2"
*SPEED SENDER MAY BE REQUIRED CHECK YOUR APPLICATION
DOWNLOAD BRACKET INSTRUCTIONS HERE
DOWNLOAD GAUGE INSTRUCTION BOOKLET HERE
