69 FIREBIRD AVIATOR SERIES

$739.99
(0) Write a Review
SKU:
69691-04

Product Description

We didn't forget about the Pontiac guys.  Our laser-cut mounting bracket allows the installation of any of our 4-3/8" gauge kits in the stock housing.

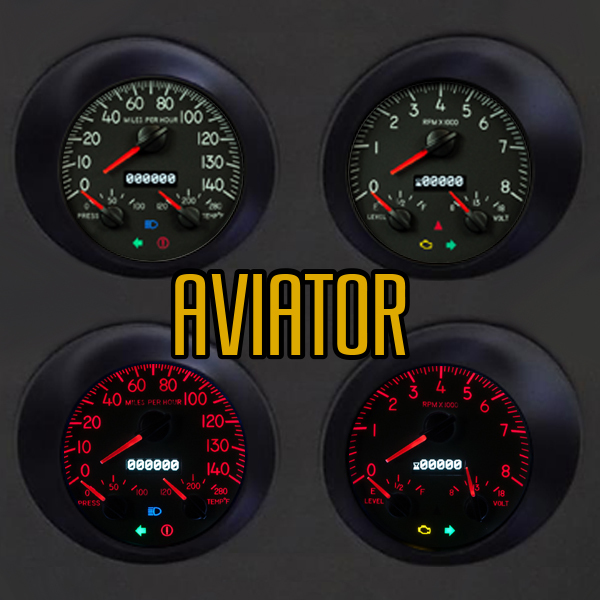

AVIATOR instruments deliver the information you need to monitor your vitals in a clean, easy to read package that is designed to be rugged and take the abuse you throw at your high-performance vehicle, whether it’s race, off road or daily driver. LED backlit glow red at night for for minimal pupil dilation at night.

A great choice for a hot rod with a modern twist, Jeeps, off road, pro-touring builds with an aviation theme or any vehicle that demands a military look while maintaining easy visibility at night.

Need more?  Add-on a oil temp, boost, air/fuel gauge below for a complete package.

* may require speedometer sender-see accessory section

AVIATOR Series 3-1 gauges use NVU's exclusive Phoenix technology featuring fully programmable inputs, displays and high-tech OLED screens.  Programmable speedometer is set up in minutes and can operate via any OE or aftermarket speed sender, PCM (computer) or GPS antenna. Programmable fuel gauge has virtually every setting for most fuel senders, no more dropping the tank. Tachometer has interface for easy set up to virtually and ignition system. Deadfronted (hidden) indicators with up to 6 lights come standard along with LED backlighting and lit pointers.  Installation is easy with our new AMP plug connections, only 1 plug per gauge for all functions.

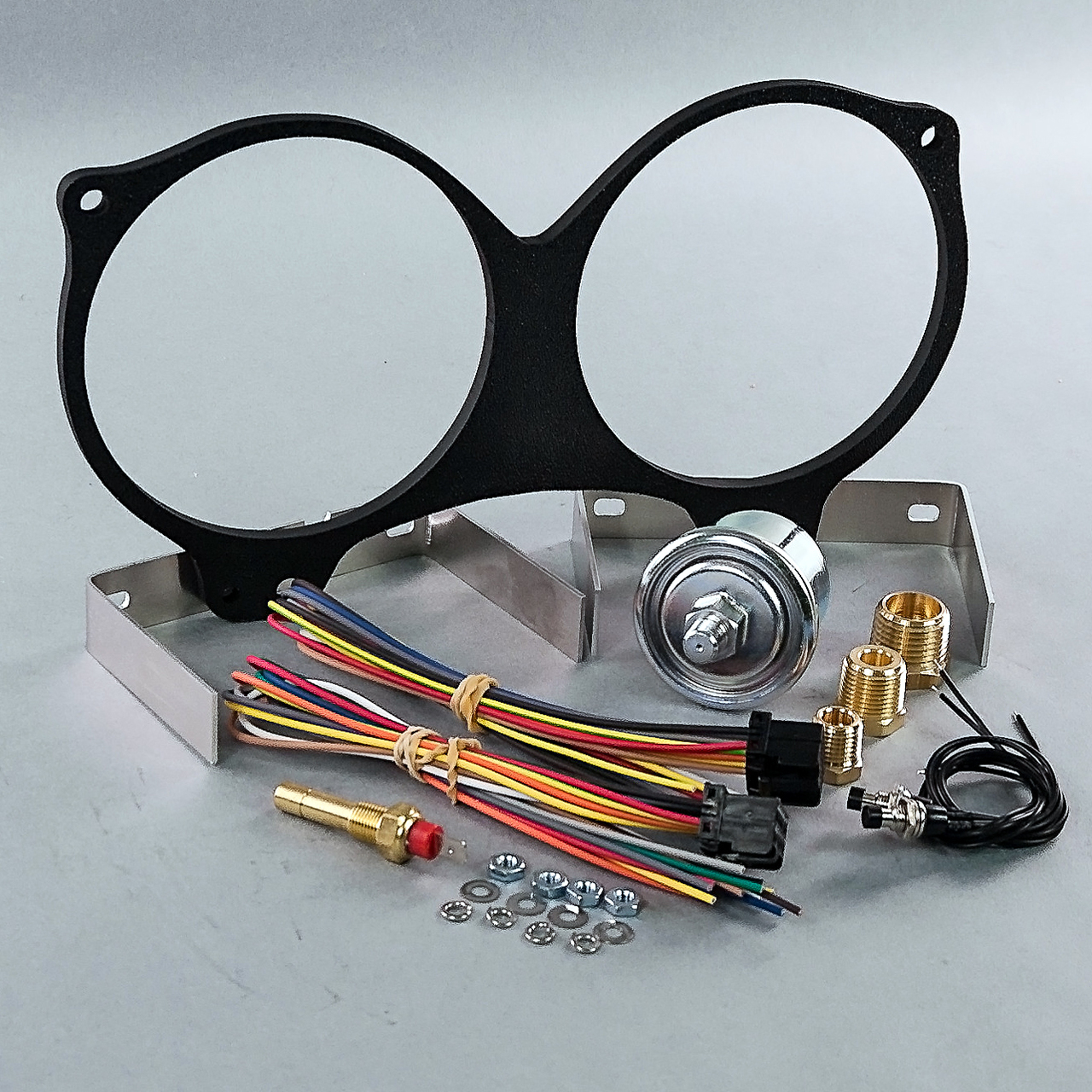

Kits include:

69 Firebird mounting bracket

4-3/8" Speedometer (140 MPH) with water temp and oil pressure

4-3/8" Tachometer (8,000 RPM) with programmable fuel gauge and voltmeter

Backclamps

AMP plug connectors with color coded wiring harness

Oil pressure sender (240-33 ohm)

Temperature sender (NVU hi match)

Hardware kit

Bushing kit

Detailed instructions

69 FIREBIRD BRACKET INSTRUCTIONS

INSTRUCTION BOOKLET DOWNLOAD

DIMENSIONED DRAWINGS
