70-72 MALIBU SWEEP DASH 1967 SERIES

$769.99
(0) Write a Review
SKU:
72067-01

Product Description

Create a whole new performance look for your 70-72 Chevelle/Malibu Sweep dash with a NVU direct-fit kit.  (Does not fit SS dash) NVU's exclusive CNC laminate bracket easily installs any NVU 6 gauge kit in your factory dash without modification to the factory bezel.  Bolts right in using the OE mountings.

Each kit is hand assembled in Detroit and features NVU’s unique mounting bracket, CNC laser cut and formed to precise specifications for a superior fit. Each kit comes complete with senders, factory-match fuel gauge (0-90). NVU instruments are easy to integrate with your old school engine or the latest LS powerplants.  Programmable speedometer reads vehicle speed from most any aftermarket and OE speed senders (including GPS); can also read from a GM PCM.  Tachometer operates from any ignition output or PCM.

NVU 1967 series gauges are the first instruments on the market with a true mid-60's style. Others have tried to duplicate, but this is the real deal! Wraparound numbers, canted tic marks, all with LED perimeter lighting for a real 60's look. Stainless steel bezels and domed lenses add a touch of class. Perfect for your Muscle-Car, Gasser, dune-buggy, 60's Truck; anything that demands that unique American muscle look.

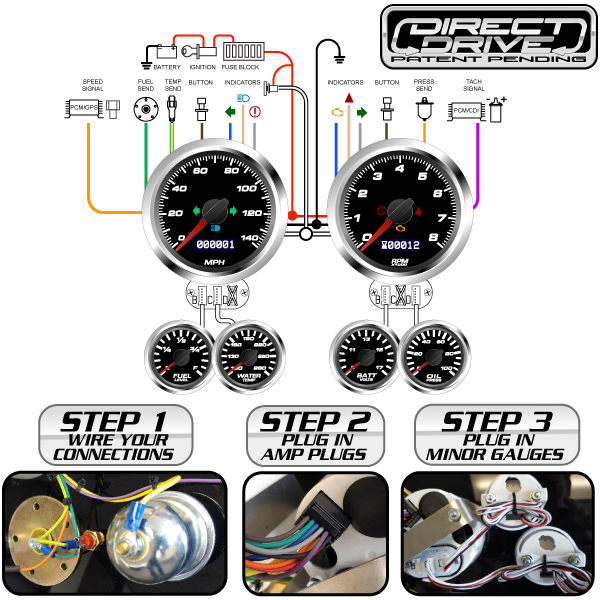

Thats just the start, behind the scenes 1967 instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA.  All 6 gauge kits with OLED screens feature Phoenix Direct Drive technology, bay far the easiest way to wire up a 6 gauge kit.  Learn more about all of the features HERE>>>

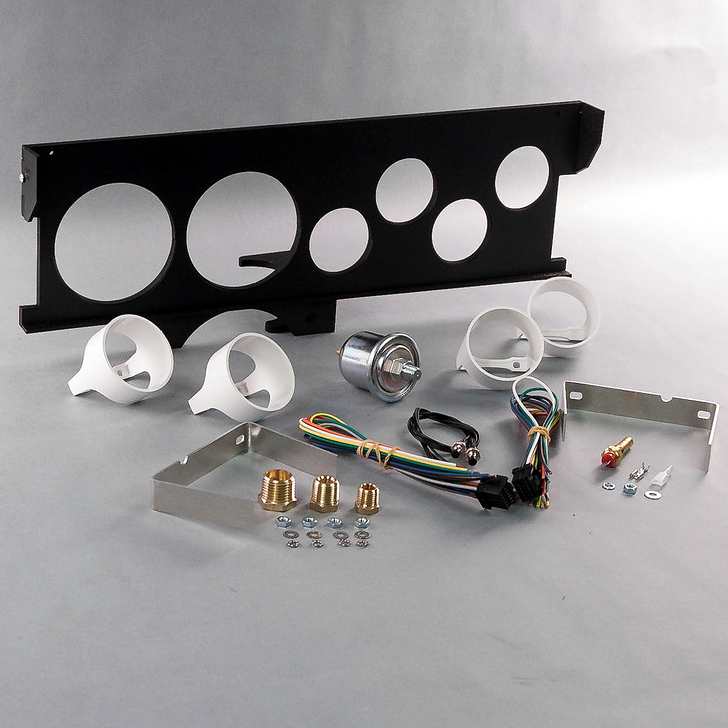

Kit includes:

70-72 Malibu/Chevelle SS Mounting bracket with detailed instructions and mounting hardware

Built-in indicators (Turn signal, hi beam, warning lights)

3-7/16" Speedometer 140 MPH programmable with 1 auxiliary input

3-7/16" Tachometer 8,000 RPM with TWO auxiliary inputs

2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)

Temperature gauge 140-280

Oil pressure gauge 0-100 PSI

Voltmeter 9-17V

2 ea AMP connector harnesses

2 ea Programming button

Bushing kit

Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)

Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

* Speed sender may be required, check your application

NEW DIRECT DRIVE INSTRUCTION BOOK

70-72 MALIBU SWEEP DASH INSTRUCTION BOOKLET
