PROUDLY DESIGNED AND BUILT IN THE USA & BACKED BY OUR 5 YEAR WARRANTY

70-72 MALIBU SWEEP DASH AVIATOR

$912.99
(0) Write a Review
SKU:
72440-01
  • pressure sender sensor 100 psi 240-33 ohm

Product Description

Create a whole new performance look for your 70-72 Chevelle/Malibu Sweep dash with a NVU direct-fit kit.  (Does not fit SS dash) NVU's exclusive CNC laminate bracket easily installs any NVU 6 gauge kit in your factory dash without modification to the factory bezel.  Bolts right in using the OE mountings.

Each kit is hand assembled in Detroit and features NVU’s unique mounting bracket, CNC laser cut and formed to precise specifications for a superior fit. Each kit comes complete with senders, factory-match fuel gauge (0-90). NVU instruments are easy to integrate with your old school engine or the latest LS powerplants.  Programmable speedometer reads vehicle speed from most any aftermarket and OE speed senders (including GPS); can also read from a GM PCM.  Tachometer operates from any ignition output or PCM.

AVIATOR instruments deliver the information you need to monitor your vitals in a clean, easy to read package that is designed to be rugged and take the abuse you throw at your high-performance vehicle, whether it’s race, off road or daily driver. LED backlit glow red at night for for minimal pupil dilation at night. Instruments feature hard-shock case and spin-on back clamp with vibration dampening o-ring, waterproof up to 35 PSI from the front,. The AVAITOR instrument line will not only add distinction to the dash but will also make sure your ride is operating properly in any conditions. Topped with black bezels and flat glass for easy viewing in open-cockpit vehicles.

A great choice for a hot rod with a modern twist, Jeeps, off road, pro-touring builds with an aviation theme or any vehicle that demands a military look while maintaining easy visibility at night.

Aviator series instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA.  All 6 gauge kits with OLED screens feature Phoenix Direct Drive technology, bay far the easiest way to wire up a 6 gauge kit.  Learn more about all of the features HERE>>>

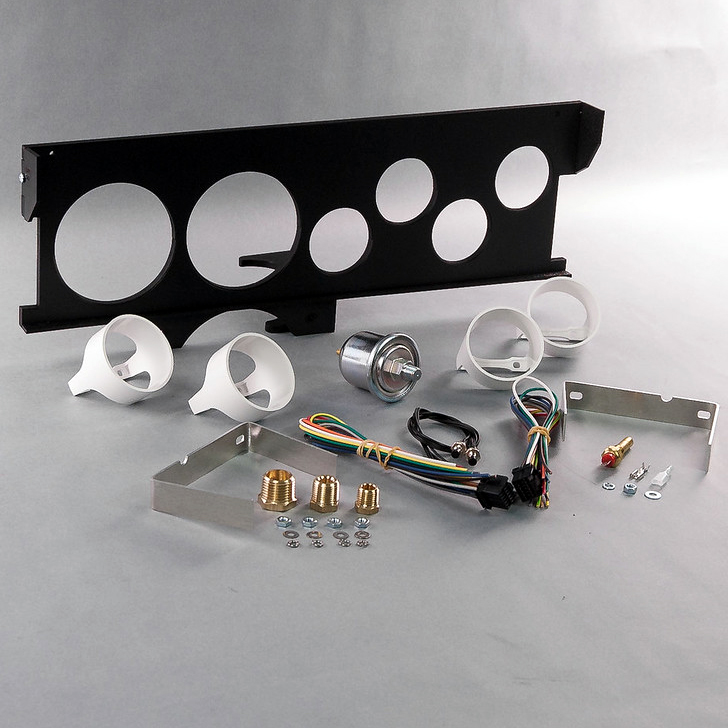

Kit includes:

70-72 Malibu/Chevelle Mounting bracket with detailed instructions and mounting hardware

Built-in indicators (Turn signal, hi beam, warning lights)

3-7/16" Speedometer 140 MPH programmable with 1 auxiliary input

3-7/16" Tachometer 8,000 RPM with TWO auxiliary inputs

2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)

Temperature gauge 140-280

Oil pressure gauge 0-100 PSI

Voltmeter 9-17V

2 ea AMP connector harnesses

2 ea Programming button

Bushing kit

Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)

Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

* Speed sender may be required, check your application

NEW DIRECT DRIVE INSTRUCTION BOOK

70-72 MALIBU SWEEP DASH INSTRUCTION BOOKLET
