PROUDLY DESIGNED AND BUILT IN THE USA & BACKED BY OUR 5 YEAR WARRANTY

73-87 CHEVY F/S AVIATOR

$967.99
(1) Write a Review
SKU:
73446-01
  • V11 GPS SPEED SENDER DAKOTA CLASSIC AUTOMETER SKYDRIVE PROGRAMMABLE SPEEDOMETER
  • pressure sender sensor 100 psi 240-33 ohm

Product Description




 CREATE YOUR OWN DESIGN BY CLICKING HERE!





DIESEL PACKAGES NOW AVAILABLE!

This kit qualifies for our free Diesel tach upgrade! Just select 4K diesel tach in the options at the bottom of this page. To learn more about the free diesel tach upgrade please click HERE>

AVIATOR instruments deliver the information you need to monitor your vitals in a clean, easy to read package that is designed to be rugged and take the abuse you throw at your high-performance vehicle, whether it’s race, off road or daily driver. LED backlit glow red at night for for minimal pupil dilation at night.  waterproof up to 35 PSI from the front. The AVIATOR instrument line will not only add distinction to the dash but will also make sure your ride is operating properly in any conditions. Topped with black bezels and flat glass for easy viewing in open-cockpit vehicles.

Great choice for a hot rod with a modern twist, Jeeps, off road, pro-touring builds with an aviation theme or any vehicle that demands a military look while maintaining easy visibility at night.

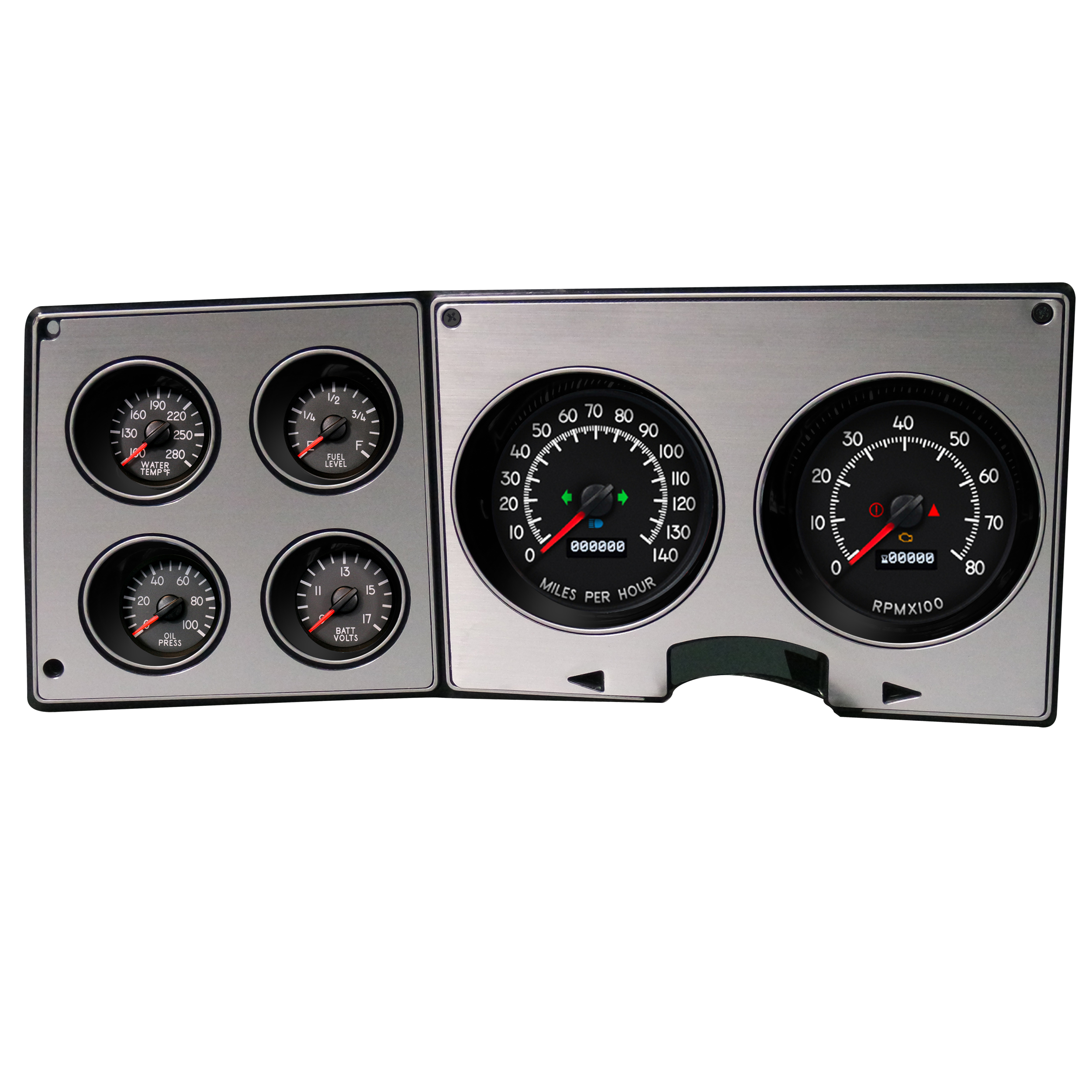

Kits include NVU exclusive mounting bracket and hardware, 4-3/8" programmable speedometer, 4-3/8" programmable tachometer operates on any cylinder configuration, 2-1/16" oil pressure, water temperature, volt and 0-90 fuel gauge. (0-90 ohm factory match fuel gauge utilizes stock sender-not included). Sender bushings, jumper wiring harnesses where required and programming button.

Aviator Series kits feature NVU's exclusive Phoenix Direct Drive technology our easy to use wiring!  Learn more about NVU's about Direct Drive and all of its features HERE>>>

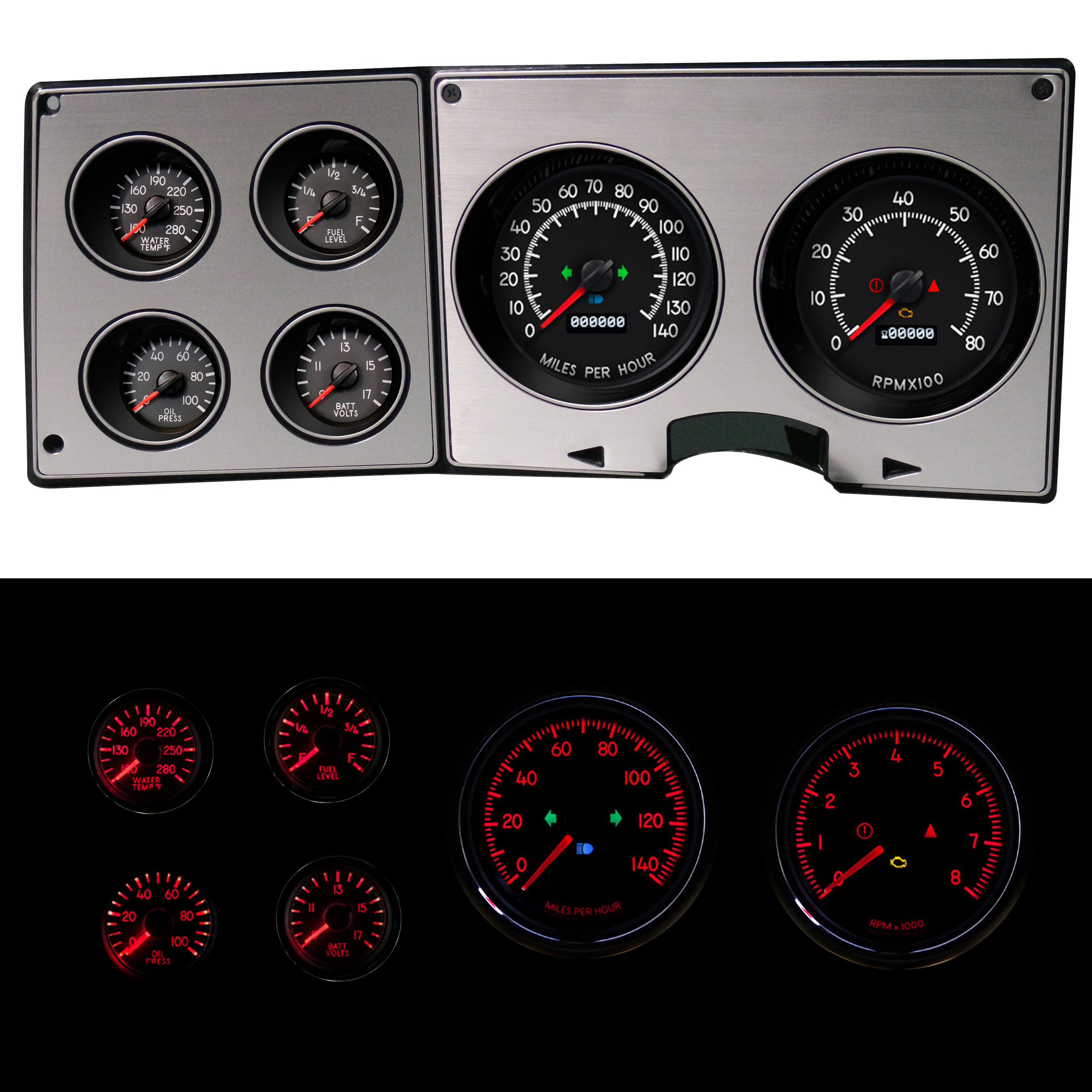

LED backlighting

Bold styling

Easy programming and setup

Built-in indicators (Turn signal, hi beam, warning lights)

4-3/8" Speedometer 140 MPH programmable with 1 auxiliary input

4-3/8" Tachometer 8,000 RPM with TWO auxiliary inputs

2-1/16" Fuel gauge (0-90)

Temperature gauge 140-280 F

Oil pressure gauge 0-100 PSI

Voltmeter 9-17V

2 ea AMP connector harnesses

2 ea Programming buttons

Bushing kit

Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)

Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)

73-87 GM Truck bracket

GAUGE INSTRUCTION BOOKLET

73-87 GM TRUCK BRACKET BOOKLET





Warranty Information

5-YEAR

Videos

Reviews

  • 4
    Great product

    Posted by butters789@mail.com on 24th Apr 2018

    Everything in the box appears to be top notch. I haven’t installed yet, but expect it to go well. I’ve never installed anything this high tech in a vehicle before so there will be some extra work for me to do to make sure I get the install correct. Since the kit does not come with everything you need to install, I would like it if the kit included a list of recommended parts for the speed sender sensor and recommended connectors to use. Ideally, the kit would come with a basic mechanical speed sender that can replace the factory style cable for the speedometer. It’s a $30 component, I’m sure it wouldn’t be to much to ask to include it in the kit.
