DIESEL PACKAGES NOW AVAILABLE!
This kit qualifies for our free Diesel tach upgrade! Just select 4K diesel tach in the options at the bottom of this page. To learn more about the free diesel tach upgrade please click HERE>
New Vintage USA complete gauge packages for 1973-1987 GM full size trucks are designed to install in the factory location and update the style and functions in the dash. Each kit is hand assembled in Detroit and features NVU's unique mounting bracket, CNC laser cut and formed to precise specifications for a superior fit. Each kit comes complete with senders, factory-match fuel gauge (0-90). NVU instruments are easy to integrate with your old school engine or the latest LS powerplants. Programmable speedometer reads vehicle speed from any most any aftermarket and OE speed senders (including GPS); can also read from a GM PCM. Tachometer operates from any ignition output or PCM.

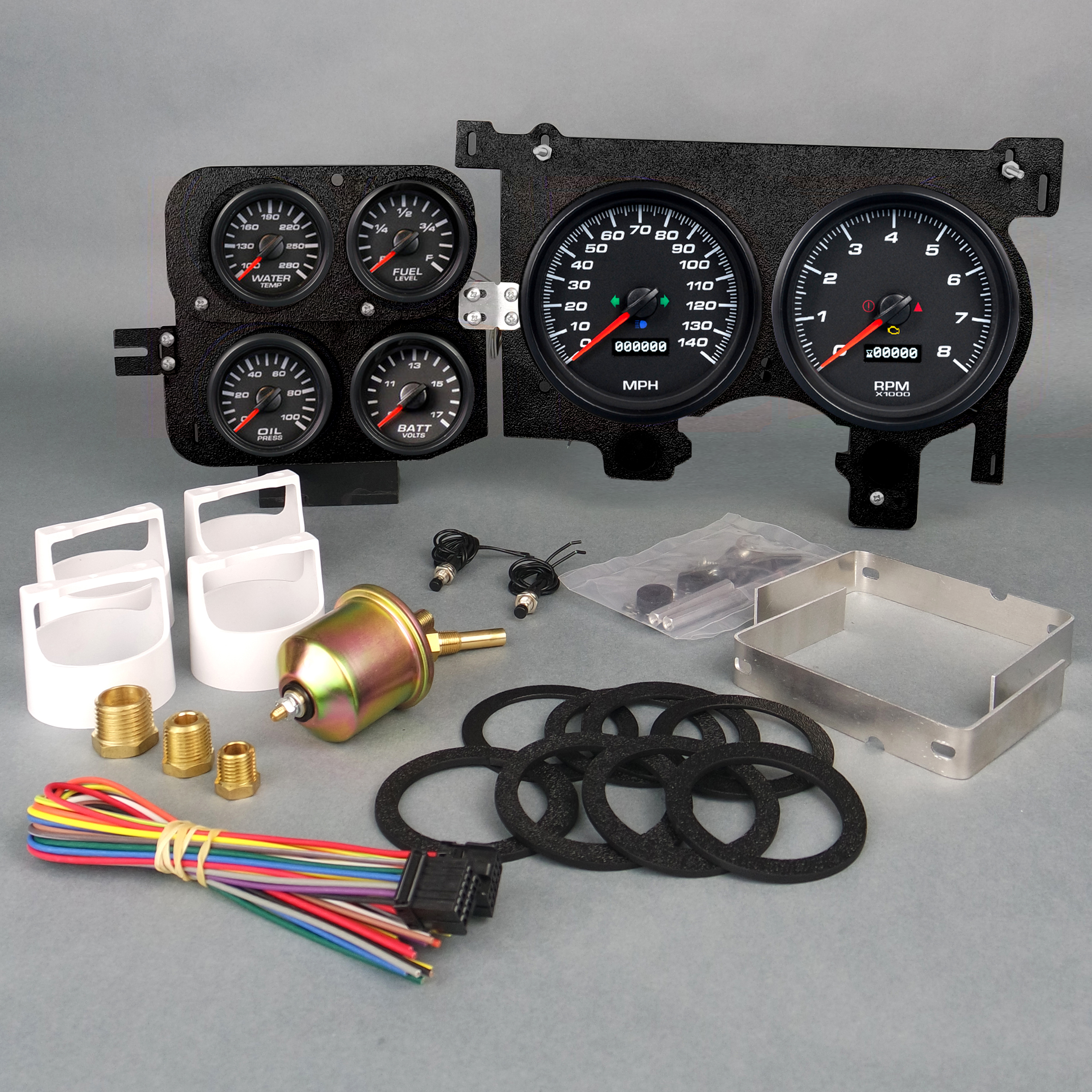

Kits include NVU exclusive mounting bracket and hardware, 4-3/8" programmable speedometer, 4-3/8" programmable tachometer operates on any cylinder configuration, 2-1/16" oil pressure, water temperature, volt and 0-90 fuel gauge. (0-90 ohm factory match fuel gauge utilizes stock sender-not included). Sender bushings, jumper wiring harnesses where required and programming button.

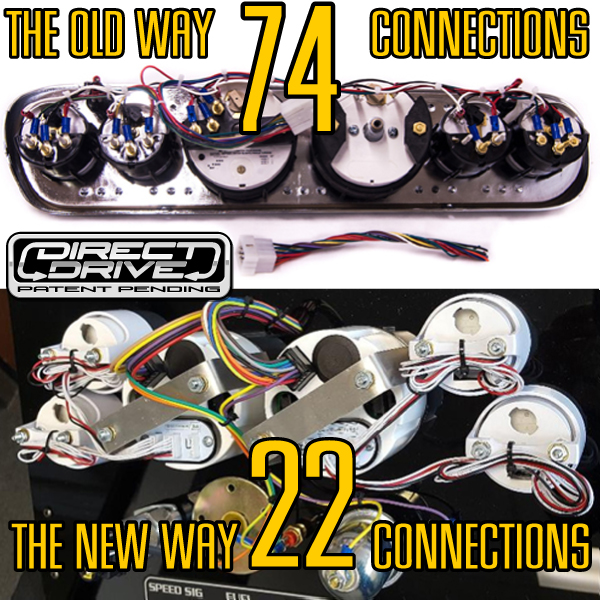

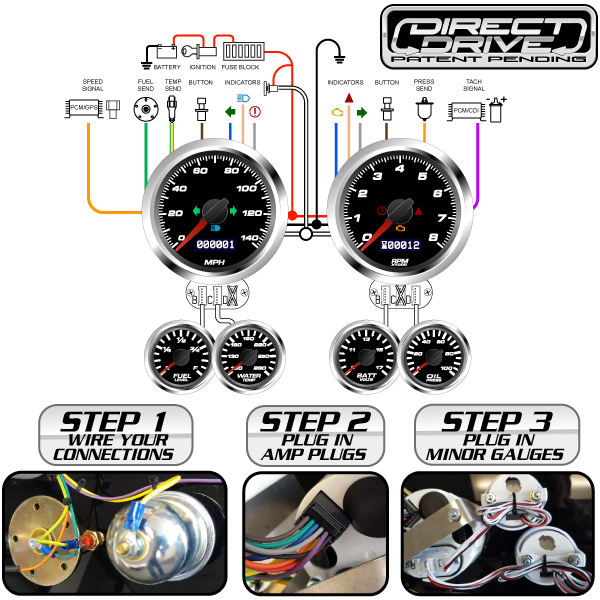

Kits feature NVU's exclusive Phoenix Direct Drive technology our easy to use wiring! Learn more about NVU's about Direct Drive and all of its features HERE>>>

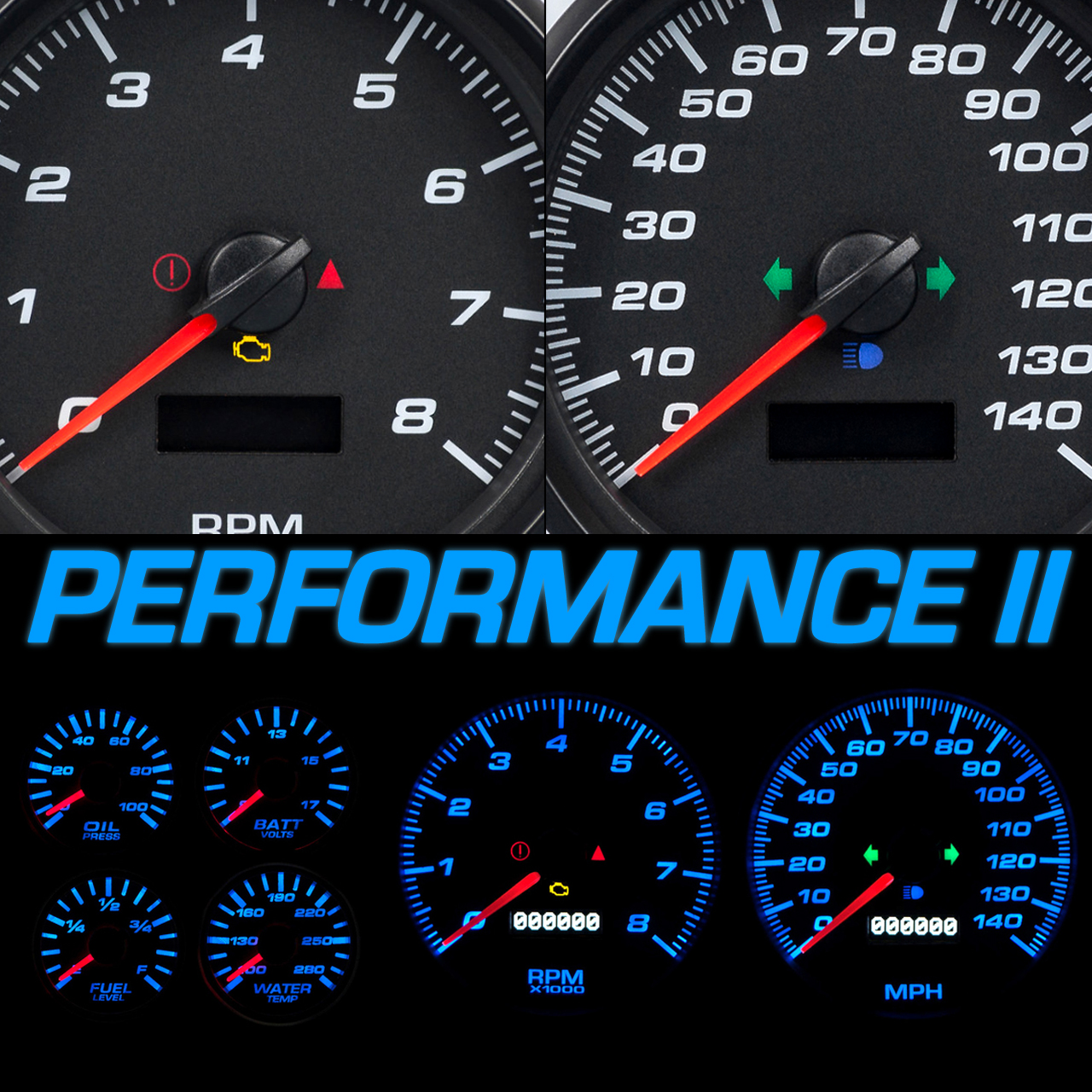

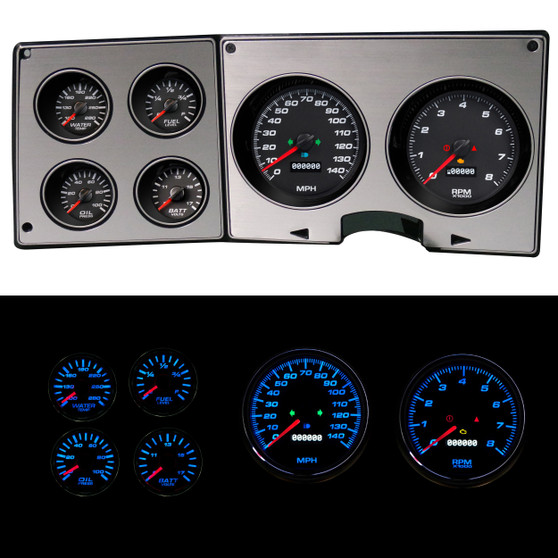

The Performance II gauge style brings an updated performance look without the "in your face" look of a racing gauge, with bold graphics, blue back lighting and lit pointer.
LED Blue backlighting
Easy programming and setup
Built-in indicators (Turn signal, hi beam, warning lights)
4-3/8" Speedometer 140 MPH programmable with 1 auxiliary input
4-3/8" Tachometer 8,000 RPM with TWO auxiliary inputs
2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)
Temperature gauge 140-280 F
Oil pressure gauge 0-100 PSI
2 ea AMP connector harnesses
2 ea Programming buttons
Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)
Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)
73-87 GM Truck bracket
73-87 GM TRUCK BRACKET BOOKLET
All in all I would say it took me about 6 hours to install, but I am a perfectionist. The gauges look absolutely amazing! The kit instructs you to use the long screws with the standoffs but that was way too long for me. I bought new screws and mounted the standoffs directly to the mounting plate, prefect spacing after that. I also had to buy longer screws to mount it to the dash. The 3/4" length isn't enough, it needs at least 1". I've been using them for about a week now and haven't had any issues. I combined my speedometer with their GPS sensor and it works flawlessly. I do wish I could change the background lighting color though. I love the blue but some customization here would be cool.
