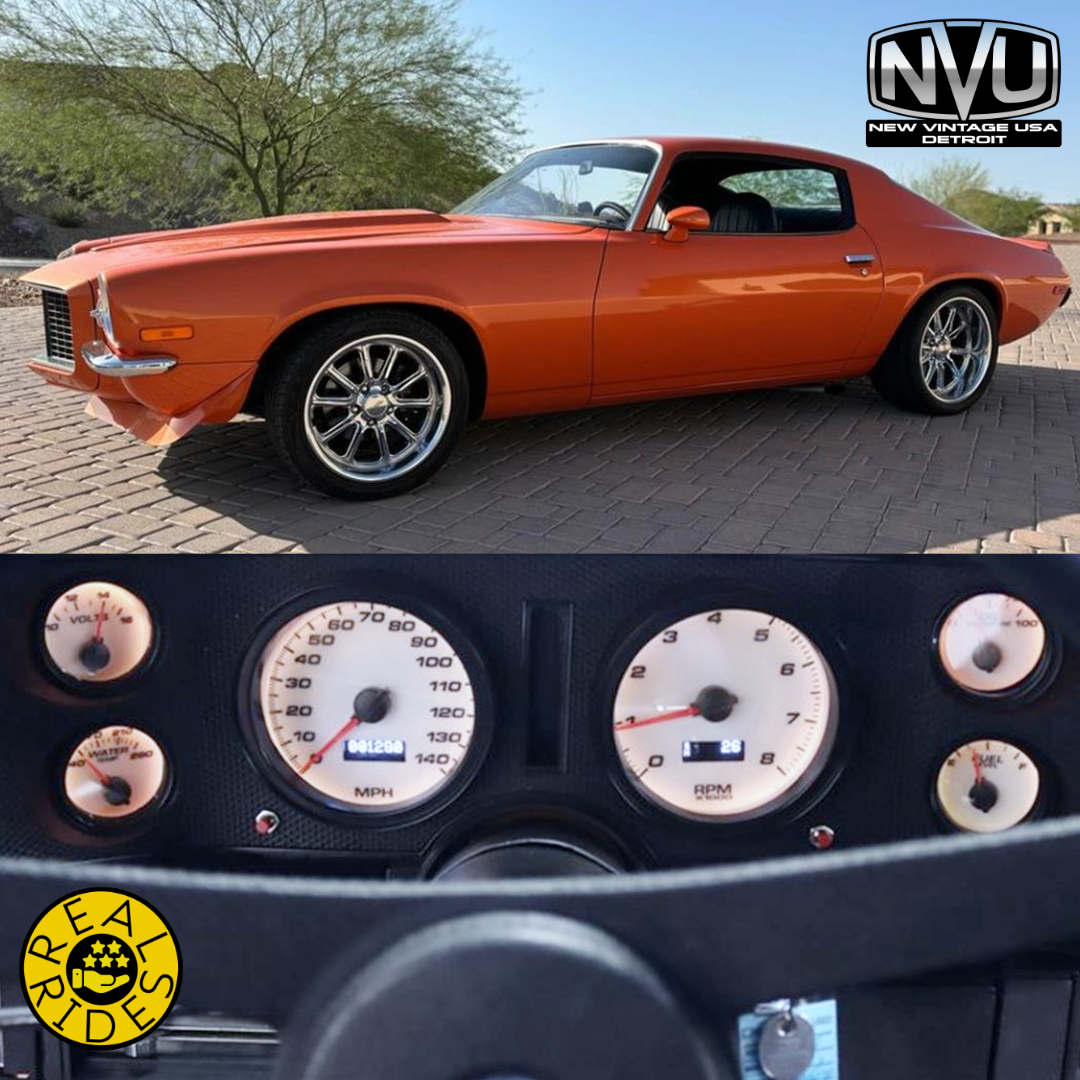

Gauge kits for Gen II Camaro fit all dashes from 70-78 fitting in the factory location. NVU’s exclusive CNC cut ABS bracket features full adjustability for to fit those older dashes that may not be so straight anymore! Gauges mount in any location offering you flexibility in where and how you want to monitor the vehicle’s vitals. Choose from several of NVU’s BOLD styles to make that dash stand out in a way that fits your ride’s look.
Instruments can operate on virtually any engine configuration from old-school small blocks to modern LS and LT PCMs all without any boxes, module or drivers!
Performance Series gauges offer great OEM style performance graphics look modern and racy without being over the top, a perfect match for Pro-touring builds or any vehicle that wants an updated look. Bold design with modern pointer, perimeter incandescent lighting, and new ranges to match today's power plants.
NVU's Phoenix technology behind the scenes drives the gauges with easy to read menu functions, fully programmable inputs for speedo and tach make this the most versatile stand-alone gauge kit on the market! Mo additional filters, adapters or driver modules or boxes, NVU instruments run as-is. New temperature and pressure ranges for today's builds.
Speedometer operates from any speed signal OE, PCM (computer), aftermarket or even our GPS antenna.
Looks are only skin deep; all Performance instruments are based on our Phoenix platform with user select able inputs, OLED screens, stepper motor technology all made in the USA. All 6 gauge kits with OLED screens feature Phoenix Direct Drive technology, bay far the easiest way to wire up a 6 gauge kit. Learn more about all of the features HERE>>>
Gen II(70-78) Camaro mounting bracket kit
Speedometer 4-3/8" 140 MPH with Phoenix features and one additional analog input
Tachometer 4-3/8" 8,000 RPM with Phoenix features and 2 additional inputs
2-1/16" Fuel gauge 0-90 Ω (GM factory match)
2-1/16" Voltmeter 10-16V
2-1/16" Oil pressure 0-100 PSI
2-1/16" Water temp 140-280 F
2 ea AMP connectors
Water temperature sender Hi Match
Oil pressure sender 240-33Ω 1/8-27 NPT
Bushing kit 1/8-27 NPT to 1/4", 3/8", 1/2"
*SPEED SENDER MAY BE REQUIRED CHECK YOUR APPLICATION
